Part #:
|
AS00427
|
|
Manufacturer:
|
American Lighting
|
|
Manufacturer Part #:
|
00427
|
|
Manufacturer Description:
|

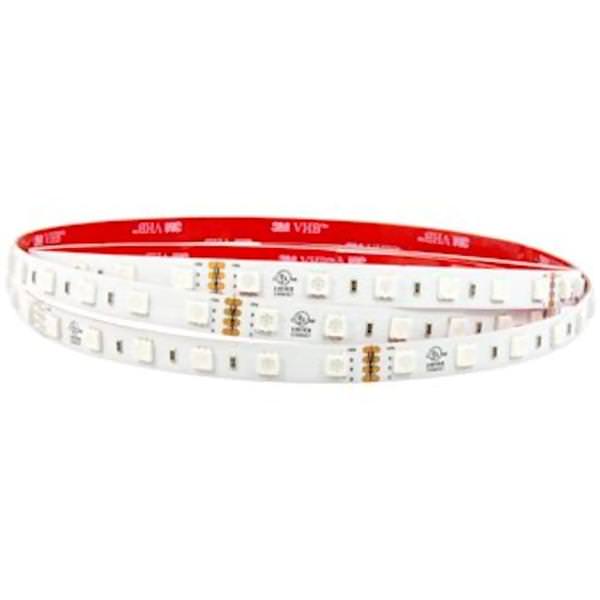

16.4' - 24V LED REEL HTL-RGB-LED
|
|
UPC Code:
|
714176004273
|
|
Case Size:
|
6
($952.14/Case)
|
|
The pricing of $158.69 is per item, not per case
|
|
|
|
|
|
Length:
|
16.4'
|
|
Light Output:
|
2,600 lumens
|
|
Energy Used:
|
4.4
watts
|
|
Average Lifetime:
|
50,000 hours
|
|
Volts:
|
24
|
|
Beam Angle:
|
120°
|
|
HTL-RGB (IP54) 16.4ft Reels Include:
|
Attached 3ft lear wire (3) TL-4PWR power connectors
|
|
Mounting:
|
Surface mount via attached 3M adhesive tape, mounting clips, or aluminum extrusions (sold separately)
|
|
Lumens per Foot:
|
160
|
|
Cutting:
|
3.94"
|
|
Dimming:
|
Trulux controllers or DMX control
|
|
Operating Temp:
|
5°C (41°F) to 70°C (158°F)
|
|
|
Applications
|
| Dry and damp locations |
| Task or accent lighting |
| Edge lighting |
| Cabinetry |
| Shelving |
| Coves, |
| Staircases |
| Toe kicks |
| Railings |
| Display cases
|
|
|
|
Features
|
| 3-in-1 RGB CCT |
| RGB LEDs spaced every 0.64” |
| IP54 Rated |
| Economical and versatile tape light with RGB capable light output and run lengths up to 22ft |
Unjacketed (IP54) rating
| Linking accessories, controllers, receivers, power supplies, and extrusions are available for Trulux tape light (sold separately)
|
|
|
|
