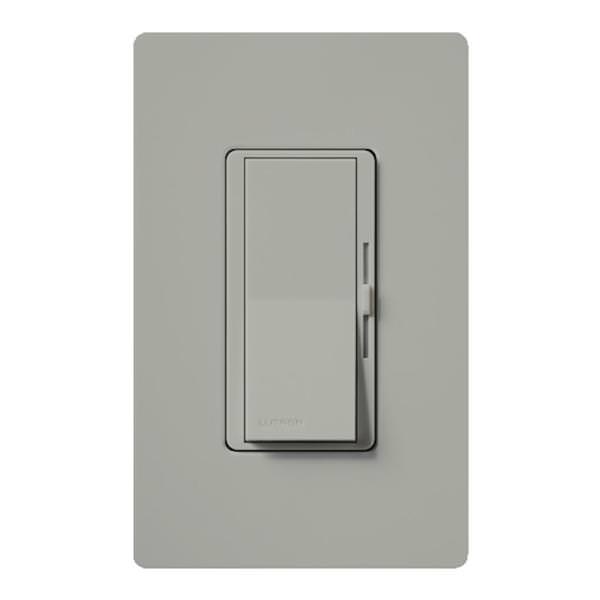

| Control for 0-10 volt LED drivers and fluorescent ballasts |
| Connects directly to the line voltage to switch on/off, so a power pack is not needed |
| Cannot be used with a wired occupancy sensor |
|
| Troubleshooting |
| Problem: Lights do not dim or remain at low light level |
| Remove the 0-10 volt (violet/gray) leads from the control. Lights should go to 100%. If not, check the fixture wiring. Touch the violet/gray wires together on the ballast/driver and lights should dim down to low end. If not, follow troubleshooting steps from the ballast/driver manufacturer |
| Problem: Light drops out when dimming or turns on to brightest level before reaching the highest level on the dimmer |
| Adjust low-end or high-end trim according to Installation Instructions |
| Problem: Lights do not turn off |
| Make sure ballast/driver line voltage goes through the switch and is not fed with a constant hot feed
|
