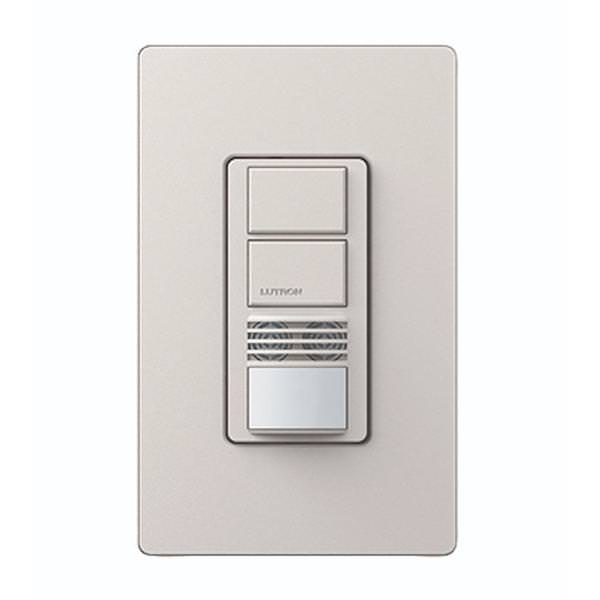

| Dual technology |
| Dual circuit |
| Ground connection required |
| Neutral connection not required |
| Occupancy portion can be disabled so lights must be manually turned on (vacancy mode). Cannot override the sensor to keep the lights on all the time |
| Do not apply 120V and 277V to different circuits on the same sensor. Use two separate sensors for this kind of application |
|
| Troubleshooting |
| Problem: Sensor switch does not respond to button presses or sensor switch only worked once |
| Black wire is not connected to line/hot. Swap black and red wires |
| Check wiring. Ground wire must be connected for product to function |
| Problem: Lights do not turn on when space is occupied |
| Off-While-Occupied mode may be enabled and the timeout has not expired |
| Sensor mode is set to vacancy |
| Sensor is set to one of the Ambient Light Detection (ALD) settings and the room is too bright for the current light level setting |
| Sensor does not have full view of the room. Move objects that may be blocking line-of-sight
|
