1' X 2' Selectable watt 120/480 volt CCT Selectable White Smart Sensor Frosted Lens Pro Dimmable LED
Litetronics Light Bulbs

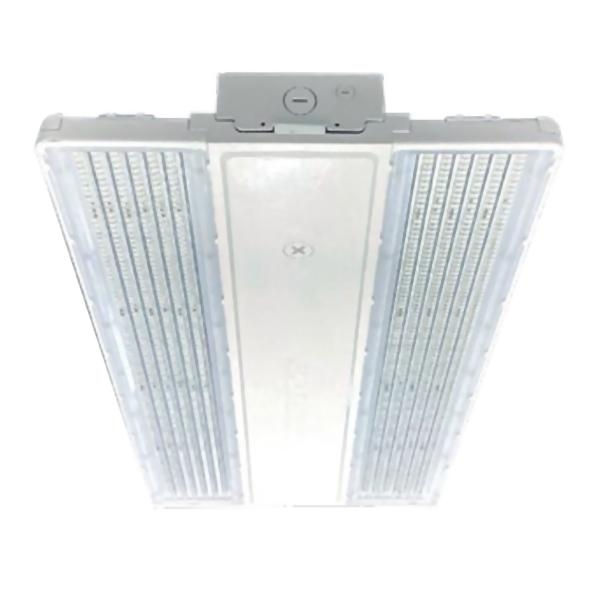

Litetronics LED Linear High Bay Pro (81490)

1' X 2' - 290/330/385 watt - 120/480 volt - 4,000K/5,000K - CCT Selectable - Wattage / Power Selectable - White - Powder Coat - Smart Sensor - Polycarbonate Frosted Lens - Pro - Dimmable

$329.99
  Retail: $440.00
Quantity:
Should ship by September 19
Design Lights Consortium Premium QUALIFIED
RoHS Compliant
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: LT81490
Manufacturer: Litetronics
Manufacturer Part #: 81490
Manufacturer Description:

385W LINEAR HIGH BAY PRO 120-480V WATT AND CCT SELECTABLE SENSOR (LHBP385)
UPC Code: 706762814908
Case Size: 6    ($1,979.94/Case)
The pricing of $329.99 is per item, not per case
Size: 1' X 2'
Light Output: Selectable lumens
Energy Used: Selectable watts
Average Lifetime: 100,000 hours
Volts: 120/480
Color / Finish: White
Color Temperature: Selectable
CRI: 80
Length: 26.7 inches
Width: 13.4 inches
Height: 2.5 inches
Weight: 10.6 pounds
Efficacy: 156 LpW
Mounting: Suspension Cable V Hook / Pendant / Surface
Operating temp: -40°F to 131°F (-40°C to 55°C)
Input Frequency: 50/60Hz
THD: <20
Surge Protection: ANSI C82.77 compliant 10KV
Dimming: 0-10VDC ANSI C137.x compliant
Minimum dimming: 0% of rated lumen LED drive current
Aux. Voltage: Yes
Whip/Cord: 10’
Sensor: Plug-In (Choice of PIR, Microwave, Bluetooth
PF: >.95
Beam: 90° x 90°
Aisle Beam: 45° x 110°
UGR: <28
Lumens: 45000 | 53000 | 61000
Applications
Warehouse & storage
Industrial facilities
Sports facilities & gyms
Manufacturing facilities
Retail centers
Rated for Damp Locations
Features
Aisle distribution with NO TOOLS
LiteSmart mobile app compatible
Two beam patterns in one lens!
LHBP385
Emergency battery backup available
Only High Bay fixture in the industry featuring an All-In-One 120-480v driver as of 3/25.
Switch from Standard to
It comes standard with 10’ suspension cables and a 10’ cord, making it an easy upgrade from linear fluorescent fixtures
Pendant or surface mounting kit options are available
Selectable CCT
Lens rotation feature allows optic lenses to be rotated out without tools
Optional pluggable sensor enabling occupancy sensing and daylight harvesting (sold separately)
FCC Compliant
Die Cast Aluminum Housing
IP20 Rated
Manufacturer's Warranty
10 Year
Related Documents
Spec Sheet
