25' Cord Level 2 App Control Built-in WiFi/Bluetooth Residential Wall Mount EV Charging Station
Click to view larger photo
Click to watch video
Ledvance Energy Solutions

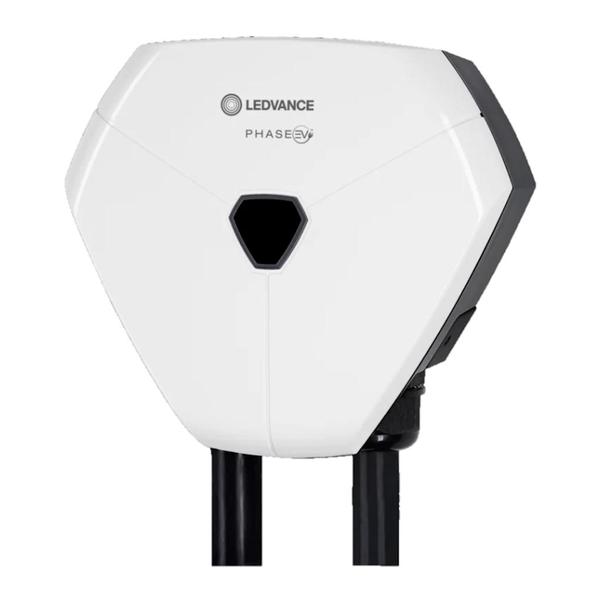

Ledvance Residential EV Charging Station (78146)

48 amp - 25' Cord - Level 2 - Residential - Sylvania Smart App Control - Built-in WiFi/Bluetooth - PHASE EV™

$649.99
  Retail: $924.00
Quantity:
Should ship by September 23
Energy Star QUALIFIED
RoHS Compliant
Details
Part #: SL78146
Manufacturer: Ledvance
Manufacturer Part #: 78146
Manufacturer Description:

EVC48ALVL2R

UPC Code: 046135781469
Color Finish: Orange
Max Output Power: 11.5kW
MaxOuput Current: 48 A
Votlage: 240 volt
Operating Temperature: -22°F to +122°F (-30°C to +50°C)
Certifications: cETLus - FCC - ENERGY STAR® - RoHS - UL2594 compliant - NEC625 compliant
Applications
Perfect for facility managers of office, multi-residential, retail, education, hospitality, and other business locations.
Residential
Features
Level 2 fast charging with 11.5kW maximum power output
Up to 42 miles of range per hour of charge
SAE J1772 charging connector
25-foot charging cable
Controlled via the SYLVANIA Smart WiFi App
Plug & Play operation is possible
Built-in WiFi / Bluetooth
Rugged NEMA 4X Enclosure
IK10 impact protection
IP65
Dynamic LED light shows the status of the charger
The SYLVANIA Smart WiFi App gives users ultimate flexibility over their use and monitoring of the PHASE EV charger, including setting various charge modes, scheduling the charging sessions to take advantage of off-peak utility rates, and tracking their energy usage
Must be hardwired to a local Junction Box with a 2-pole 60A breaker at the electrical panel
Charger has a 28" 6AWG input cable
Charger mounts to a wall with included mounted bracket
Charging handle holster with integrated cable wrap is included for neat storage
Manufacturer's Warranty
3 Year
