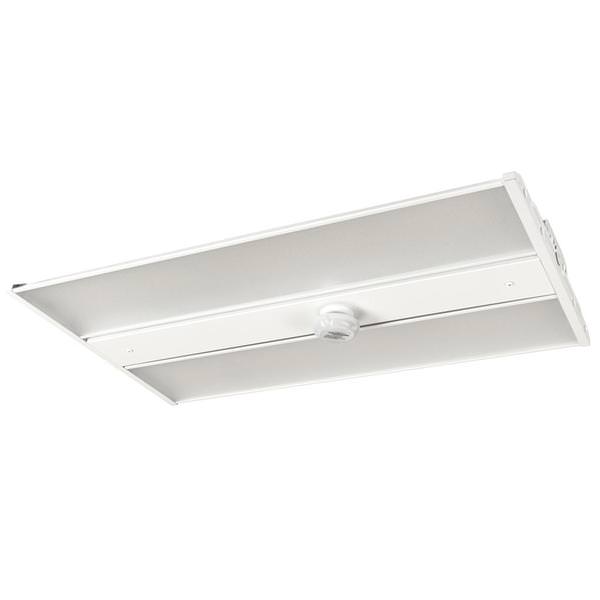

1' x 2' Selectable watt CCT Selectable Dimmable LED

Keystone LED High Bay (13456)

1' x 2' - 105/90/65 watt - 120/277 volt - 4,000K/5,000K - White - CCT Selectable - Power Selectable - Dimmable

$162.89

Retail: $213.73

Should ship by September 23

Write the First Review

Works with
approved dimmers

Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!

Details

Part #:

KT13456

Manufacturer:

Keystone

Manufacturer Part #:

13456

Manufacturer Description:

KT-HBLED105PS-2FB-8CSD-VDIM-P

UPC Code:

843654134567

Case Size:

6 ($977.34/Case)

The pricing of $162.89 is per item, not per case

Size:

1' x 2'

Light Output:

Selectable lumens

Energy Used:

Selectable watts

Average Lifetime:

50,000 hours

Volts:

120/277

Color / Finish:

White

Color Temperature:

Selectable

CRI:

Length:

24.8 inches

Width:

11.8 inches

Height:

1.9 inches

Efficacy:

145-157 LpW

Power Factor:

0.90

Applications

Commercial and industrial high bay lighting

Features

	Color & Power Selectable
	122°F Max Ambient Temperature
	Smooth diffused lens for an even appearance
	Compatible with Keystone SmartSafe emergency LED drivers
	Compatible with Keystone 480 – 277V step down transformers
	Built in port to accept Quick install Keystone sensor (KTSMW3-12V-PKO & KTS-PIR3-12V-PKO.)
	No wiring required
	Ambient operating temperature: -40ºC/-40ºF to 50ºC/122ºF
	UL Listed 1598: Suitable for damp locations
	THD: <20%
	Architectural grade compact design
	Frosted lens eliminates glare
	V-hook and chain mounting accessories included

Manufacturer's Warranty

5 Year

Related Documents

Spec Sheet
