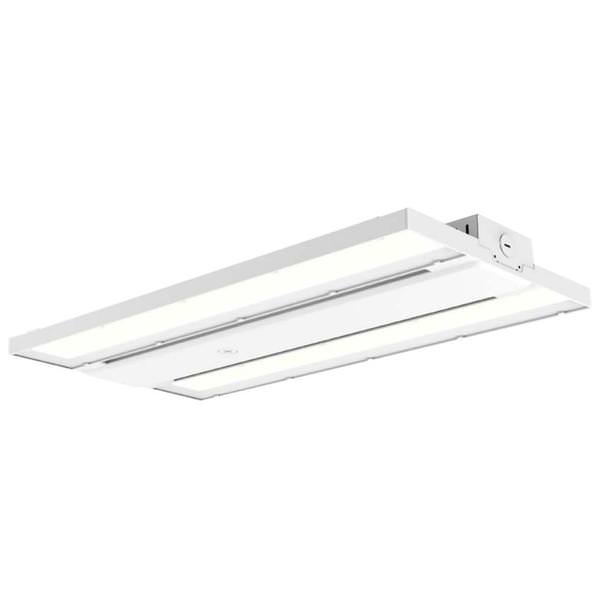

1' x 2' Power Selectable 120/277 volt Frosted Color Selectable White Dimmable LED

Keystone LED High Bay Fixture (10571)

1' x 2' - 215/175/135 watt - 120/277 volt - Frosted - Power Selectable - Color Selectable - White - Optic Swap - Xfit - Dimmable

$243.69

Retail: $375.32

Should ship by September 19

Write the First Review

Works with
approved dimmers

Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!

Details

Part #:

KT10571

Manufacturer:

Keystone

Manufacturer Part #:

10571

Manufacturer Description:

KT-HBLED215PS-2C-OSC-8CSD-VDIM

UPC Code:

843654105710

Case Size:

6 ($1,462.14/Case)

The pricing of $243.69 is per item, not per case

Size:

1' x 2'

Light Output:

27,630 lumens

Energy Used:

Selectable watts

Average Lifetime:

50,000 hours

Volts:

120

Color / Finish:

White

Color Temperature:

Selectable

CRI:

Length:

24 inches

Width:

12 inches

Weight:

9.9 pounds

Efficacy:

155 LpW

Lumen Range:

21,960-32,870

Applications

Used for commercial and industrial high bay lighting applications

Features

	Innovative tool-free optic swap capability
	Two lenses in the box: Standard lens (90x90) installed, Aisle Lens (45x110) included
	Powered by Keystone 0 –10V dimming LED drivers
	Smooth diffused lens for an even appearance
	0–10V Dimming, Dim-to-off
	Compatible with Keystone 480 – 277V step down transformers
	Built in port to accept Quick install Keystone sensor
	Ambient operating temperature: 20°C/-4°F to 55°C/131°F
	UL Listed 1598: Suitable for damp locations
	THD: < 20%
	Power factor > 0.95
	6kV built-in surge protection
	LED chip lifetime: L70 >100,000 hrs

25Cº/77Fº ambient fixture temp
	Architectural grade compact design
	Frosted lens eliminates glare
	V-hook and chain mounting accessories included
	Compatible with Keystone SmartSafe emergency LED drivers; KT-EMRG-LED-12C-1200-EN /DF and KT-EMRG-LED-20SD2000-EN /DF are optimal for fixture level installation; mounting kit KT-HBLED-EM-BR-1C-KIT required (sold separately)

Manufacturer's Warranty

10 Year Limited

Related Documents

Spec Sheet
