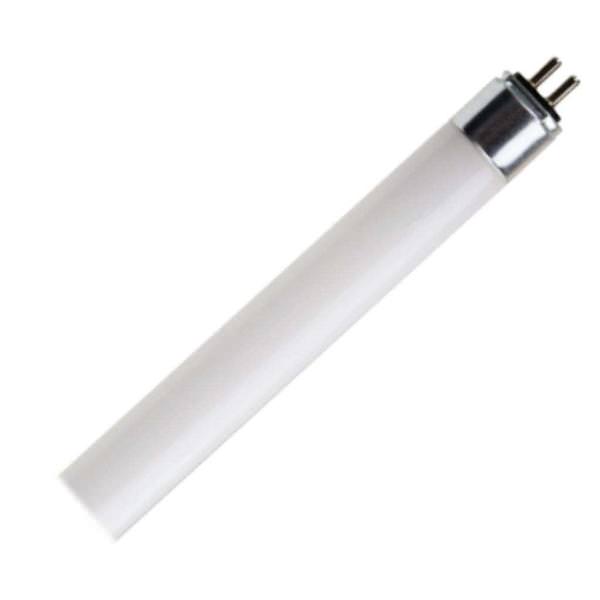

12 watt 48" 120/277 volt T5 Miniature Bi-Pin Base 4000K Cool White Single Ended PET Coated Dimmable LED
Click to view larger photo
TCP Light Bulbs

TCP LED Light Bulb (24278 / LT5HE13C40K)

12 watt - 48" - 120/277 volt - T5 - Miniature Bi-Pin (G5) Base - 4,000K - Cool White - Single Ended - PET Coated - Dimmable

$16.99
  Retail: $21.25
Quantity:
Should ship by October 10
Design Lights Consortium QUALIFIED
National Standards for Food Safety Certified
UL Classified
RoHS Compliant
Replaces a 26 watt
Incandescent Bulb
Works with
approved dimmers
External
Driver
Details
Part #: TC24278
Manufacturer: TCP
Manufacturer Part #: 24278
Manufacturer Description:

LT5HE13C40K

UPC Code: 762148242789
Case Size: 25    ($424.75/Case)
The pricing of $16.99 is per item, not per case
Power Input: External Driver
Light Output: 1,750 lumens
Energy Used: 12 watts (replaces 26 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: T5
Base Type: Miniature Bi-Pin (G5)
Color / Finish: Cool White
Color Temperature: 4,000K
CRI: 80
Length: 45.8 inches
Width: 0.6 inches
Beam Angle: 160°
Applications
Can be used in open or enclosed fixtures
Can be used in dry or damp location applications
Offices
Restaurants
Retail Stores
Lobbies
Schools
Hospitals
Features
Excellent for retrofits and custom applications
Remote driver powers LED Tubes
Low voltage connection to Tube sockets
Greater efficiency vs. old fluorescent ballasts
Dimmable with 0-10v dimmers
Universal Voltage 120-277V
Power factor > .90
Environmentally friendly - no mercury and minimal UV and IR
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
