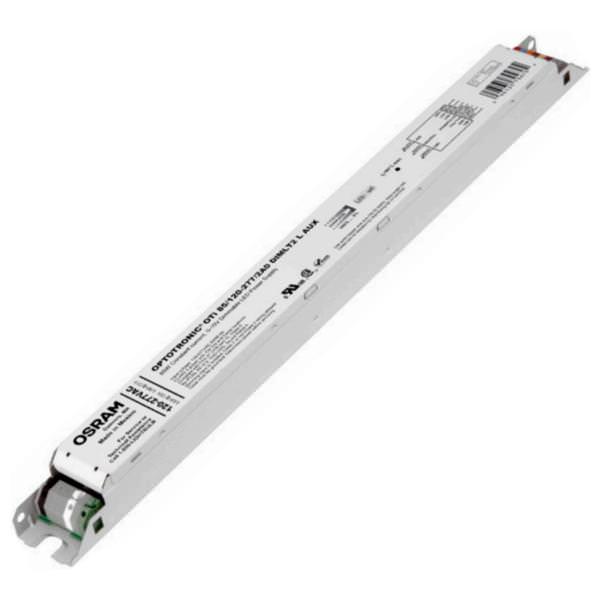

85 watt 120/277 volt Dimmable LED Power Supply
Click to view larger photo
Sylvania Light Bulbs

Sylvania LED Power Supply (57425)

85 watt - 120/277 volt - Programmable - Constant Current - Dimmable - OPTOTRONIC®

$99.99
  Retail: $161.68
Quantity:
Should ship by October 14
UL Listed
RoHS Compliant
Works with
approved dimmers
Details
Part #: SL57425
Manufacturer: Sylvania
Manufacturer Part #: 57425
Manufacturer Description:

OTI851202772A3DIM1LHBA

UPC Code: 046135574252
Case Size: 10    ($999.90/Case)
The pricing of $99.99 is per item, not per case
Energy Used: 85 watts
Volts: 120/277
Length: 16.7 inches
Width: 1.2 inches
Height: 1 inch
Bulb Type(s) Used: LED
Output Voltage: 10-55V
Output Current Range: 700-2300mA
Applications
Indirect/direct
Linear
Recessed troffer
Features
OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
Programming doesn't require powering up or connecting the power supply to AC line voltage
Specification grade dimming down to true 1% or 10% on 0-10V dimmers
UL Class 2 output for safe operation
Related Documents
Spec Sheet
