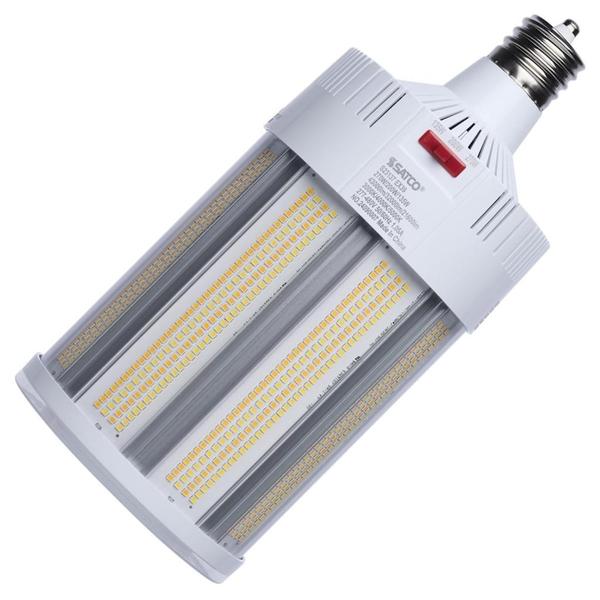

Satco LED HID Retrofit (23138)
180/270/360 watt - 277/480 volt - Corncob - Mogul Extended Screw (EX39) Base - 3,000K/4,000K/5,000K - CCT Selectable - Wattage Selectable - White - Clear Lens - Polycarbonate - Ballast Bypass / Direct Wire - Dimmable
| $309.79 |
| Retail: $408.87 |
Should ship by September 26
Replaces a 750 watt
Incandescent Bulb
Incandescent Bulb
Works with
approved dimmers
approved dimmers
Ballast Bypass /
Direct Wire
Direct Wire
Details
| Part #: | SA23138 | ||||||
| Manufacturer: | Satco | ||||||
| Manufacturer Part #: | 23138 | ||||||
| Manufacturer Description: |
360W/LED/CCT/277-480V/EX39 (S23138) |
||||||
| UPC Code: | 045923231384 | ||||||
| Case Size: | 6 ($1,858.74/Case) | ||||||
| The pricing of $309.79 is per item, not per case | |||||||
| Power Input: | Ballast Bypass / Direct Wire | ||||||
| Light Output: | Selectable lumens | ||||||
| Energy Used: | Selectable watts (replaces 750 watts) | ||||||
| Average Lifetime: | 50,000 hours | ||||||
| Volts: | 277/480 | ||||||
| Bulb Type: | Corncob | ||||||
| Base Type: |
Mogul Extended Screw (EX39)
How to measure the base of a light bulb: |
||||||
| Color / Finish: | White | ||||||
| Color Temperature: | Selectable | ||||||
| CRI: | 80 | ||||||
| Length: | 12.3 inches | ||||||
| Width: | 5.6 inches | ||||||
| Weight: | 3.6 pounds | ||||||
| Beam Angle: | 280° | ||||||
| Lumen Options: | 59004L/46160L/31799L | ||||||
| Operating Frequency: | 60Hz | ||||||
| Dimming Type: | Step Dimming | ||||||
| Dimming Note: | Only dimmable through wattage selection switch on lamp | ||||||
| Power Factor: | 0.97 | ||||||
| Operating Position: | Universal | ||||||
| Surge Protection: | Built-in surge protection - 4KV | ||||||
| THD: | <20% | ||||||
| Operating Temperature: | -40C (-40F) to +50C (+122F) | ||||||
| DLC ID: | S-Z75H89 | ||||||
