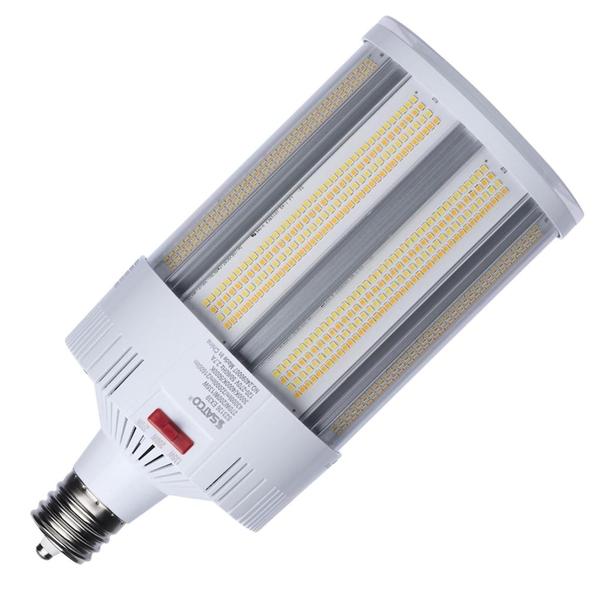

Satco LED Corncob HID Retrofit (23136)
135/200/270 watt - 120/277 volt - Corncob - Mogul Screw (E39) Base - 3,000K/4,000K/5,000K - Clear - White - CCT Selectable - Power Selectable - Ballast Bypass / Direct Wire - Dimmable
| $232.79 |
| Retail: $307.23 |
Should ship by September 26
Replaces a 600 watt
Incandescent Bulb
Incandescent Bulb
Works with
approved dimmers
approved dimmers
Ballast Bypass /
Direct Wire
Direct Wire
Details
| Part #: | SA23136 | ||||
| Manufacturer: | Satco | ||||
| Manufacturer Part #: | 23136 | ||||
| Manufacturer Description: |
270W/LED/CCT/100-277V/EX39 (S23136) |
||||
| UPC Code: | 045923231360 | ||||
| Case Size: | 6 ($1,396.74/Case) | ||||
| The pricing of $232.79 is per item, not per case | |||||
| Power Input: | Ballast Bypass / Direct Wire | ||||
| Light Output: | Selectable lumens | ||||
| Energy Used: | Selectable watts (replaces 600 watts) | ||||
| Average Lifetime: | 50,000 hours | ||||
| Volts: | 120/277 | ||||
| Bulb Type: | Corncob | ||||
| Base Type: |
Mogul Screw (E39)
How to measure the base of a light bulb: |
||||
| Color / Finish: | White | ||||
| Color Temperature: | Selectable | ||||
| CRI: | 80 | ||||
| Length: | 12.3 inches | ||||
| Width: | 5.6 inches | ||||
| Weight: | 3.6 pounds | ||||
| Beam Angle: | 280° | ||||
| Operating Frequency: | 60Hz | ||||
| Dimming Type: | Step Dimming | ||||
| Dimming Note: | Only dimmable through wattage selection switch on lamp | ||||
| Power Factor: | 0.99 | ||||
| Operating Position: | Universal | ||||
| Surge Protection: | Built-in surge protection - 6KV | ||||
| THD: | <20% | ||||
| Operating Temperature: | -40C (-40F) to +50C (+122F) | ||||
| IP Rating: | IP54 | ||||
