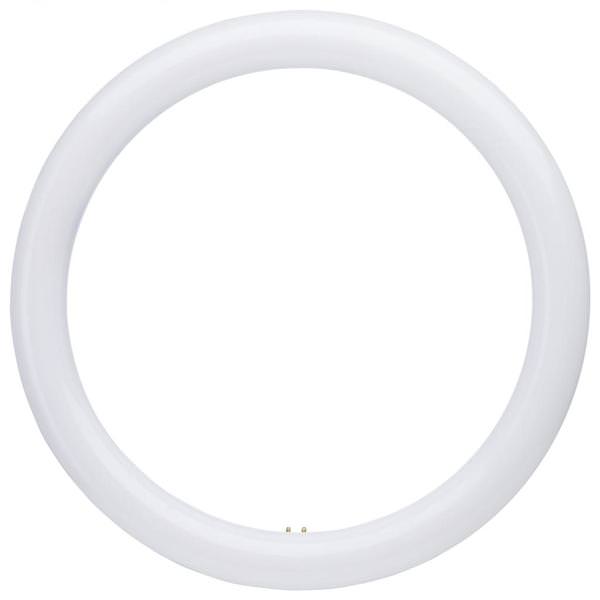

Satco LED Circline Light Bulb (16511 / FC12T9/LED/CIR/CCT/DM/A-B (S16511))
16 watt - 120/277 volt - T9 - 4-Pin (G10q) - 3,000K/4,000K/6,500K - CCT Selectable - Frosted - Dual Technology (Type A / B) - Non-Dimmable
| $23.69 |
| Retail: $35.64 |
Should ship by November 12
Replaces a 32 watt
Incandescent Bulb
Incandescent Bulb
Lumens are rated as 1,350, but range from 1,300 to 1,400 between the 3 color temperature options.
Details
| Part #: | SA16511 | ||||||
| Manufacturer: | Satco | ||||||
| Manufacturer Part #: | 16511 | ||||||
| Manufacturer Description: |
FC12T9/LED/CIR/CCT/DM/A-B (S16511) |
||||||
| UPC Code: | 045923165115 | ||||||
| Case Size: | 12 ($284.28/Case) | ||||||
| The pricing of $23.69 is per item, not per case | |||||||
| Power Input: | Dual Technology (Type A / B) | ||||||
| Light Output: | 1,950 lumens | ||||||
| Energy Used: | 16 watts (replaces 32 watts) | ||||||
| Average Lifetime: | 50,000 hours | ||||||
| Volts: | 120/277 | ||||||
| Bulb Type: | T9 | ||||||
| Base Type: |
4-Pin (G10q)
How to measure the base of a light bulb: |
||||||
| Color / Finish: | Selectable | ||||||
| Color Temperature: | Selectable | ||||||
| CRI: | 80 | ||||||
| Length: |
11.8 inches
How to measure the length of a light bulb: |
||||||
| Weight: | 0.4 pounds | ||||||
| Beam Angle: | 180° | ||||||
| Lumens: | 1850/2000/1950 (varies with color temperature) | ||||||
| Ballasting Requirements: | Ballast required (Type A, Electronic only) or Ballast Bypass (Type B) | ||||||
| Operating Frequency: | 50/60Hz | ||||||
| THD: | 25% | ||||||
| Operating Temperature: | -20C (-4F) to +45C (+113F) | ||||||
| Note: | Only compatible with Electronic ballasts when installed in Type A mode. See ballast compatibility list for details. Not for use on magnetic ballasts.; Inner Diameter: 9.45 in | ||||||
