5.5 watt 120/277 volt PLS 4-Pin Base CCT Selectable Ballast Bypass LED

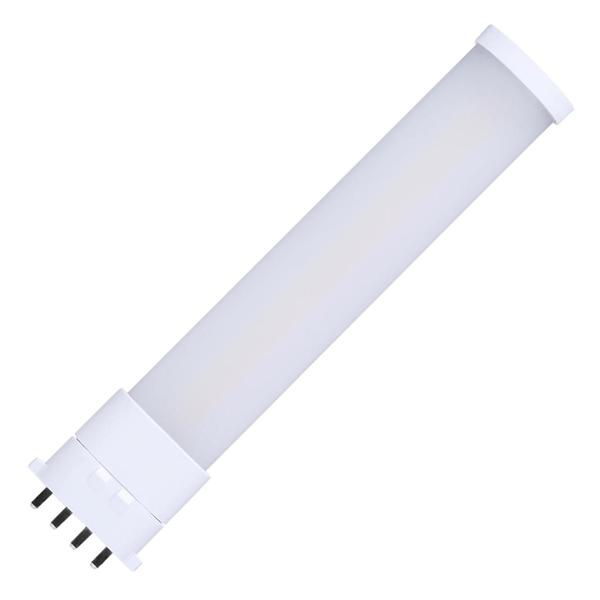

Click to view larger photo
Satco Light Bulbs

Satco LED Light (11556)

5.5 watt - 120/277 volt - PLS - 4-Pin (2GX7) Base - 2,700K/3,000K/3,500K/4,000K - CCT Selectable - Ballast Bypass - Horizontal - Non-Dimmable

$9.79
  Retail: $11.99
Quantity:
Should ship by October 7
RoHS Compliant
CA (California) Title 24 Compliant
Replaces a 13 watt
Incandescent Bulb
Ballast Bypass /
Direct Wire
Details
Part #: SA11556
Manufacturer: Satco
Manufacturer Part #: 11556
Manufacturer Description:

5.5W/LED/CFL/CCT/2GX7/BP

UPC Code: 045923115561
Case Size: 24    ($234.96/Case)
The pricing of $9.79 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Burn Position: Horizontal
Light Output: 650 lumens
Energy Used: 5.5 watts (replaces 13 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: PLS
Base Type: 4-Pin (2GX7)
Color / Finish: Selectable
Color Temperature: Selectable
CRI: 80
Length: 6.5 inches
Width: 1.2 inches
Beam Angle: 120°
Operating Temperature: -4° to 113°
Applications
Suitable for damp locations
Features
Instantaneous full light output upon power-up
Polycarbonate lens reduces the risk of injury or breakage
Type B bypassing the existing fluorescent ballast and wiring directly to line voltage
Manufacturer's Warranty
5 Year Limited
Related Documents
Spec Sheet
