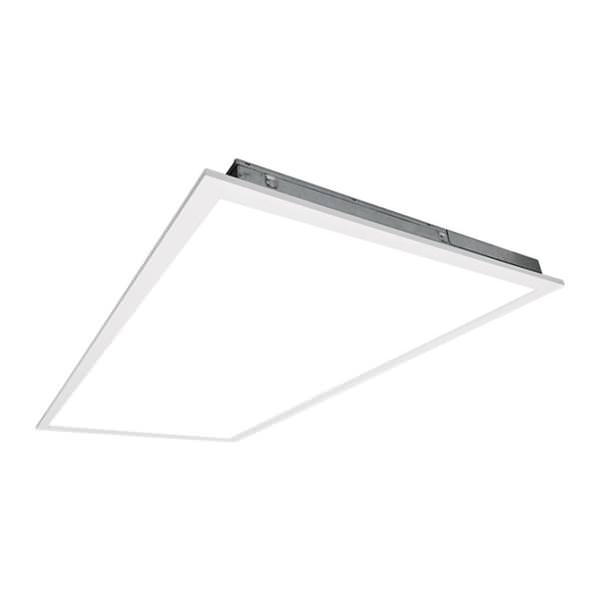

2' x 4' 47 watt 347/480 volt 3500K Neutral White Dimmable LED Troffer

Nicor LED Troffer (17318)

2' x 4' - 47 watt - 347/480 volt - 3,500K - Neutral White - White Finish - High Output - Dimmable

$69.99

Retail: $74.69

Should ship by January 7

Write the First Review

Works with
approved dimmers

Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!

Details

Part #:

NC17318

Manufacturer:

Nicor

Manufacturer Part #:

17318

Manufacturer Description:

T6C24HU35

UPC Code:

767706173185

Type:

2' x 4'

Light Output:

5,851 lumens

Energy Used:

47 watts

Average Lifetime:

54,000 hours

Volts:

347/480

Color / Finish:

White

Color Temperature:

3,500K

CRI:

Length:

47.7 inches

Width:

23.7 inches

Height:

1.6 inches

Beam Angle:

113°

LpW:

126

Applications

Certified for direct contact with insulation

Features

	For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
	Extruded aluminum frame with powder coat finish
	Durable stamped housing
	High efficiency, fully sealed, maintenance-free LED chamber
	Smooth formed sides for safe handling
	Patented internal optical system
	Precision engineered polystyrene diffuser
	High reflectivity internal coating
	No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
	Full-range dimming via 0-10VDC controls
	4kV surge protection standard
	Features a pre-mounted driver for contractor friendly installation
	Single cover plate with access to both line and low voltage connections
	Integral grid tie clips with wire holes provided for seismic requirements
	Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
	Gloss white finish

Manufacturer's Warranty

5 Year Limited
