30" 11.1 watt 120 volt CCT Selectable Dimmable LED Under Cabinet
Click to view larger photo
NICOR LED Retrofits

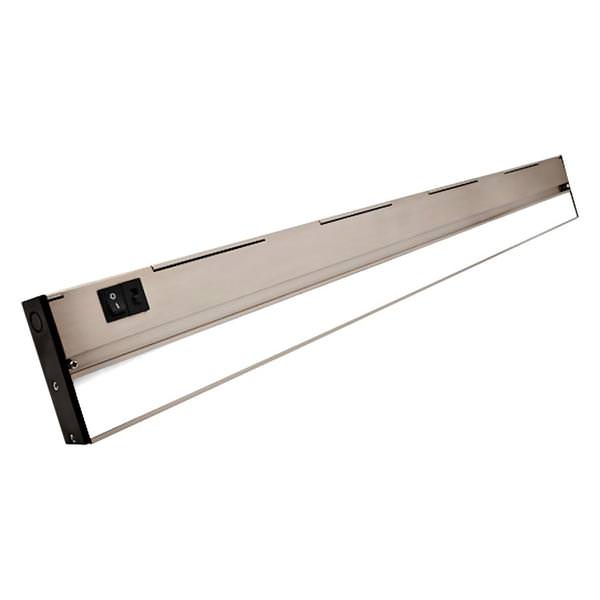

Nicor LED Under Cabinet Fixture (16163)

30" - 11.1 watt - 120 volt - CCT Selectable - Nickel - Dimmable

$187.19
  Retail: $226.49
Quantity:
Should ship by September 19
Energy Star QUALIFIED
UL Listed
CA (California) Title 24 Compliant
Replaces a 65 watt
Incandescent Bulb
Works with
approved dimmers
Details
Part #: NC16163
Manufacturer: Nicor
Manufacturer Part #: 16163
Manufacturer Description:

NUC530SNK

UPC Code: 767706161632
Case Size: 6    ($1,123.14/Case)
The pricing of $187.19 is per item, not per case
Light Output: Selectable lumens
Energy Used: 11.1 watts (replaces 65 watts)
Average Lifetime: 50,000 hours
Volts: 120
Color / Finish: Nickel
Color Temperature: Selectable
CRI: 93
Length: 30 inches
Width: 3.5 inches
Height: 1 inch
2700K: 725 lumens (65.6 LpW)
3000K: 810 lumens (73.3 LpW)
4000K: 848 lumens (76.7 LpW)
Applications
Accent
Task
Features
Operating temperature is 0°F to 120°F (-18°C – 49°C)
Selectable color temperature (2700K, 3000K, 4000K)
Full range dimming using standard LED dimmers
Ready to install directly out of the box
Requires hardwire installation with standard residential voltage (120V)
Easy access to wiring for linking fixtures together end-to-end
Manufacturer's Warranty
5 Year Limited
Related Documents
Spec Sheet
