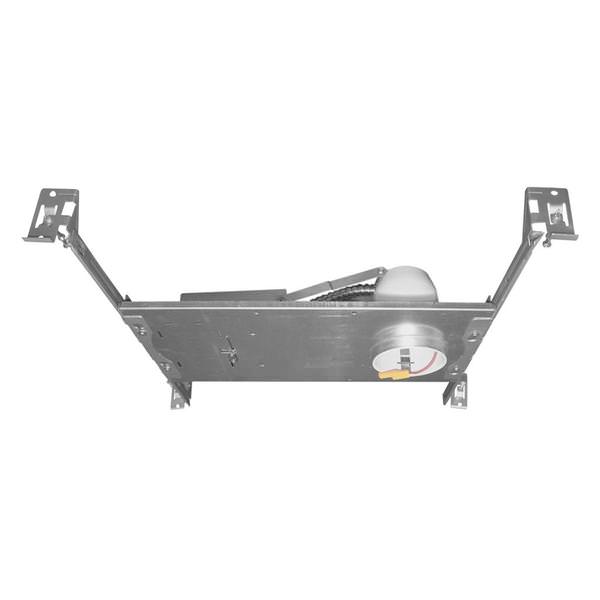

2" New Construction Galvanized LED Housing w/Triac Dimmable LED Driver
Click to view larger photo
NICOR LED Retrofits

Nicor Light Fixture (09606)

2" - New Construction - Galvanized - LED Housing - IC - Recessed - Triac Dimmable LED Driver - D-Series - IDEAL Connector

$39.19
Works with
approved dimmers
Details
Part #: NC09606
Manufacturer: Nicor
Manufacturer Part #: 09606
Manufacturer Description:

12201-LED

UPC Code: 767706096064
Case Size: 6    ($235.14/Case)
The pricing of $39.19 is per item, not per case
Type: Housing
Volts: 120
Length: 12 inches
Width: 6.25 inches
Height: 3.5 inches
# of Lights: 1
Features
The 12201-LED features IDEAL connections that allows for quick snap-in connection of NICOR® 2” D-series LED downlights
Suitable for new construction in residential and commercial applications
Galvanized steel plaster frame with J-Box and captive hanger bars
Triac dimmable LED driver is mounted directly to housing
3 1/2” height allows use in 2” x 4” joist construction
Adjustable hanger bar brackets allow for orientation either direction
Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span
Four double-headed captive nails provide for ease of installation
Score lines allow bars to be shortened without tools to accommodate a 12” joist span
