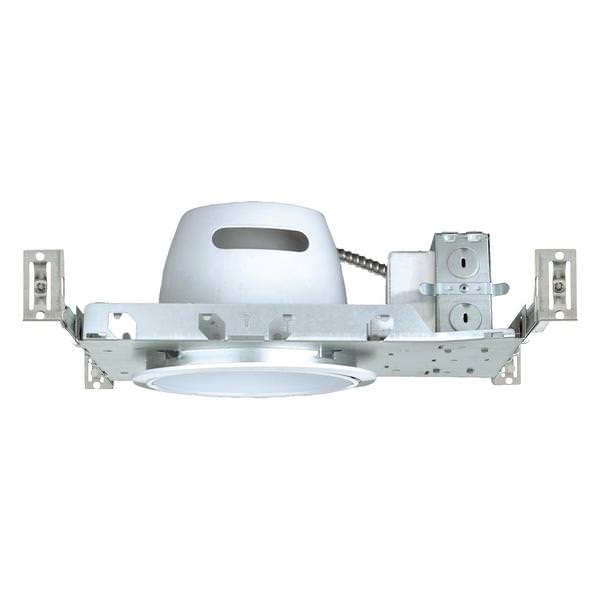

| Suitable for new construction in residential and commercial applications |
| NON-IC. Insulation must be kept a minimum of 3” from housing |
| 120-277V Universal input electronic ballast. |
| Commercial frame allows direct installation to wood joist or steel stud constructions |
| Housing is secured to plaster frame with screws and can be removed for access to junction box. |
| Housing adjusts from 1/2” to 1 1/2” to ac |
| Listed for through branch circuit wiring and includes several 3/4” knockouts. Four pry-outs with integral strain relief simplify Romex installation |
| Supplied with three IDEAL® push-in wire connectors |
| Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws. Unique hanger bar lip design helps align can to joist. Four double-headed captive nails provide for ease of installation |
| Bars can be repositioned 90° on plaster frame without tools. |
| Bars fit onto T-bar spine for quick alignment and can be permanently secured. |
| Score lines allow bars to be shortened without tools to accommodate a 12” joist span |
| Use two double twin tube, G24Q-1 (not included)
|
