| Integral thermal protector guards against improper lamping and misuse of insulation materials |
| 5 3/4" height allows for use in 2"x6" joist construction |
| Adjustable socket bracket assures proper and consistent lamp positioning |

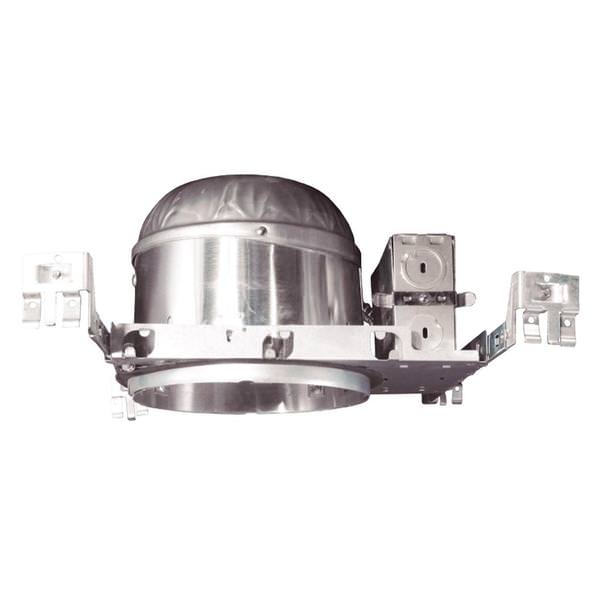

| 6" Airtight Shallow Housing IC |
| Suitable for new construction in residential or commerical applications |
| Line voltage |
| IC rated. Suitable for direct contact with insulation |
| Listed for through branch circuit wiring and includes several 3/4" knockouts |
| Supplied with three push in wire connectors |
| Four pryouts with integral strain relief simplify Romex installation |
| Housing is secured to plaster frame with screws and can be removed for access to junction box |
| Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at any point within a 24" joist span |
| Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas |
| Washington State Energy Code approved to meet restricted airflow requirements |
| 150 Watt max |
| BR40/PAR38
|
