| Weatherproof Polycarbonate Housing & Lens |
| 1/2” CDS Light Sensor with Heat Sink |
| Thermal Switch |

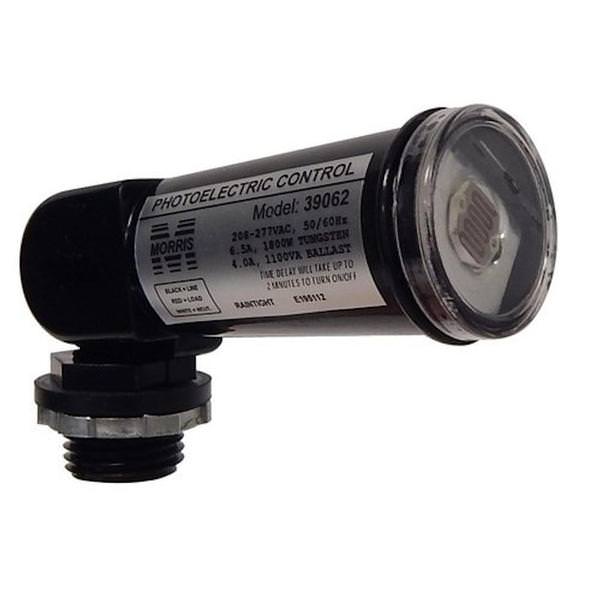

| Thin cylindrical shape Swivel Mount Photo Control fits neatly between twin floodlights or other tight applications |
| Swivel Mount Photo Controls typically mounts on fixtures or boxes |
| Field adjustable swivel base makes it easy to direct the photocell away from stray light |
| “O” ring sealed to prevent water from entering through the knuckle |
| Light Levels: ON: .9 to 1.9 FC OFF: 2.8 To 5.6 FC |
| Single Pole, Single Throw Switch |
| Temperature Range: -40°F – +158°F |
| Relative Humidity: 96% |
| Power Consumption:1.5 Watts Max |
| Life Cycle: 6500 Cycles |
| Contact Position at Night is Normally Open |
| Standard 1/2” I.P.S. Pipe Thread Nipple |
| 6” Color Coded Leads with Wiring Diagram on Control
|
