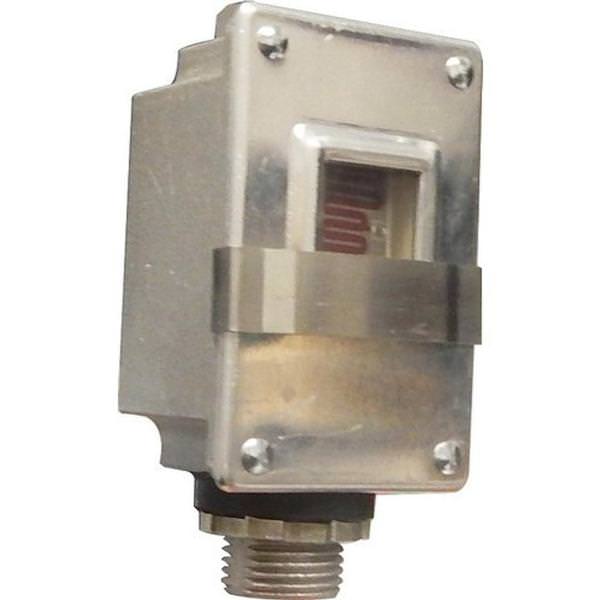

| Die Cast Aluminum Vandal Resistant Housing |
| 1” Extra Wide Light Sensor for Increased Accuracy |
| Photocontrol features a heavy-duty thermal bi-metal switch that provides a 30-60 second time delay. This virtually eliminates unwanted lamp cycling that could be caused by lightning, car headlights, etc |
| Although the turn-on level is pre-set at the factory, each control is furnished with an adjustable slide shutter/bar that allows field adjustment |
| Typically mount on fixtures or boxes |
| Single Pole, Single Throw Switch |
| Contact Position at Night is Normally Closed |
| Temperature Range: -40°F to 158°F |
| Power Consumption Below 1.5 Watts Average |
| Standard 1/2” I.P.S. Pipe Threaded Nipple, Includes Gasket and Locknut |
| 6" Color Coded Leads with Wiring Diagram on Control
|
