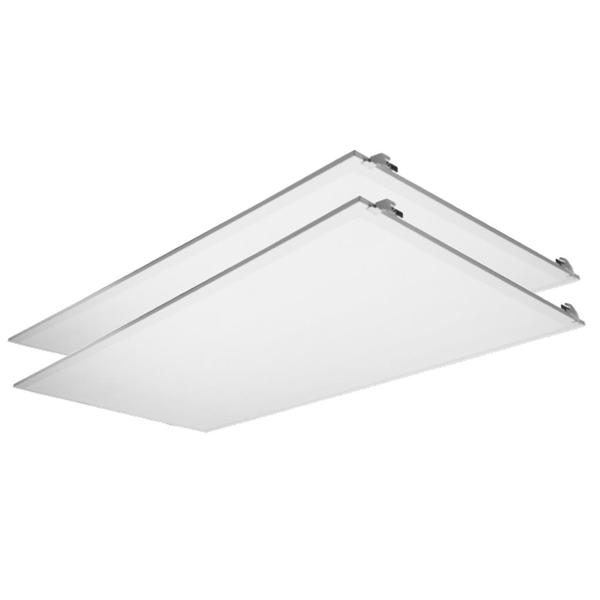

2' x 4' 22/30/38 watt 120/277 volt CCT Selectable Dimmable LED Flat Panel Retrofit Kit (2 Pack)
Click to view larger photo
MaxLite Light Bulbs

Maxlite LED Flat Panel Retrofit Kit (2 Pack) (05712)

2' x 4' - 22/30/38 watt - 120/277 volt - 3,500K/4,000K/5,000K - CCT Selectable - Controls Ready - Steel White Housing - FPR Series - Dimmable

$199.00
  Retail: $248.60
Quantity:
Should ship by October 10
Design Lights Consortium Premium QUALIFIED
RoHS Compliant
Works with
approved dimmers
Details
Part #: MX05712
Manufacturer: Maxlite
Manufacturer Part #: 05712
Manufacturer Description:

FPR24D22WCSCR/2PKTA

UPC Code: 767627057120
Size: 2' x 4'
Light Output: Selectable lumens
Energy Used: Selectable watts
Average Lifetime: 100,000 hours
Volts: 120/277
Color / Finish: White
Color Temperature: Selectable
CRI: 80
Length: 45.4 inches
Width: 22 inches
Height: 2.4 inches
Weight: 7.5 pounds
Lumen Range: 3080/4200/5320
Operating Temperature: -4°F to +122°F (-20°C to +50°C)
Applications
ETL listed for damp locations
Features
to break the ceiling plenum.
Quick Installation of Flat Panel Retrofit Kit in existing luminaire without the need
Design prevents any gaps from the retrofit fit in the existing troffer
Includes safety cable to attach to housing
0-10V Dimming Technology
PolyStyrene Lens
TAA Compliant
DLC Premium
Manufacturer's Warranty
10 Year Limited
Related Documents
Instructions
Spec Sheet
