200 watt 120/277 volt CCT Selectable Bronze LED

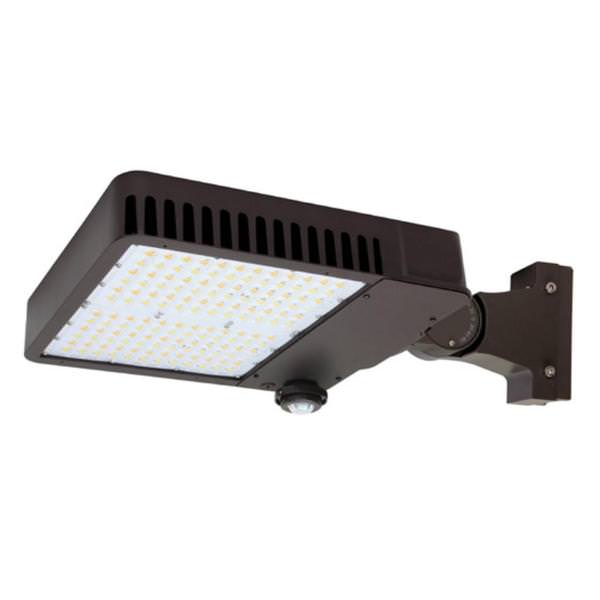

Click to view larger photo
MaxLite Light Bulbs

Maxlite LED Area Light Fixture (02815)

200 watt - 120/277 volt - 3,000K/4,000K/5,000K - CCT Selectable - Bronze - Type III - Trunnion Swivel - AR Series - Controls Ready

$574.59
  Retail: $821.70
Quantity:
Should ship by September 19
UL Listed
RoHS Compliant
CA (California) Title 24 Compliant
Replaces a 750 watt
Incandescent Bulb
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: MX02815
Manufacturer: Maxlite
Manufacturer Part #: 02815
Manufacturer Description:

AR200UT3-CSBTCR
UPC Code: 767627028151
Light Output: 27,000 lumens
Energy Used: 200 watts (replaces 750 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Color / Finish: Bronze
Color Temperature: Selectable
CRI: 70
Length: 16.6 inches
Width: 15 inches
Height: 3.5 inches
Operating Temperature: -40°F to 104°F (-40°C to 40°C)
Features
7.5” Straight Arm1, includes labor saving slot pattern which eliminates need to drill holes on most retrofits
Trunnion Swivel
2-3/8” - 3” OD Slipfitter Knuckle
Flexible Tilt Arm1, includes labor saving slot pattern which eliminates need to drill holes on most retrofits
Adjustable Wall Mount
Replaces up to 1,000W MH equivalent
Universal 120-277V dimming driver standard, 277-480V available
Controls Ready - simple plug and play Sensor Receptacle enables installation of c-Max, photocell, motion sensor/PC and future network controls without changing the fixture
Meets ANSI 3G vibration standard for bridges and overpasses
Comes with 41” 18/3 SO cord
CCT selectable between 3000K/4000K/5000K
Trade Agreements Act (TAA) compliant product available - Contact MaxLite for details
0-10V and High-end trim
Die Cast Aluminum with corrosion resistant powder coat finish
Impact resistant, UV stabilized Polycarbonate
FCC Compliant
IP65 Rated
Manufacturer's Warranty
10 Year
Related Documents
Installation Instructions
Spec Sheet
