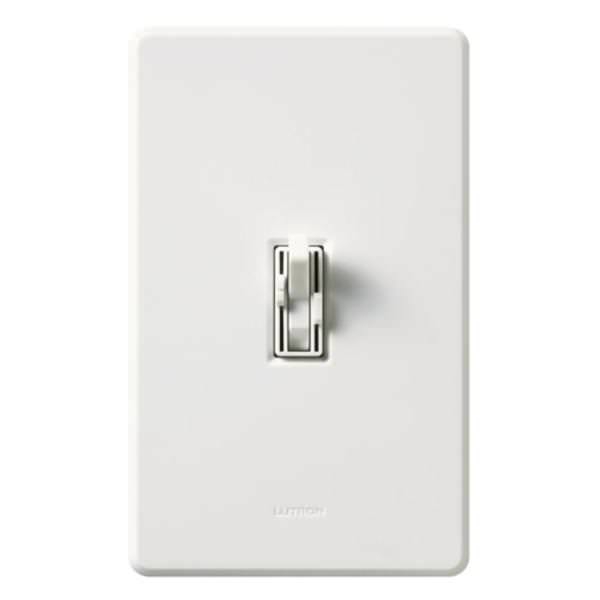

| On / off switch |
| Slide dimmer and fan speed control |
| Only works with incandescent and halogen bulbs |
| Fan control is not solid-state |
| Controls one fan |
| Can be used on a fan that has pull chains for speed control; chain must be on highest speed for control to work |
|
| Troubleshooting |
| Problem: Lights flicker or do not turn off |
| Check the bulbs in use are either incandescent or halogen |
| Check light pull chains are in on position |
| Check that the fan does not have a "current-limiting device" in the light kit (may need to check with fan manufacturer) |
| Problem: Fan does not come on or is stuck at low speed |
| Check fan pull chains are in on position and set for the highest speed |
| Make sure the control is only hooked up to one paddle fan |
| Problem: Light slider will only work if the fan slider is on, or vice versa |
| One of the load wires and the common are switched. Consult the wiring diagram for correct wiring
|
