Part #:
|
LU68084
|
|
Manufacturer:
|
Lutron
|
|
Manufacturer Part #:
|
68084
|
|
Manufacturer Description:
|

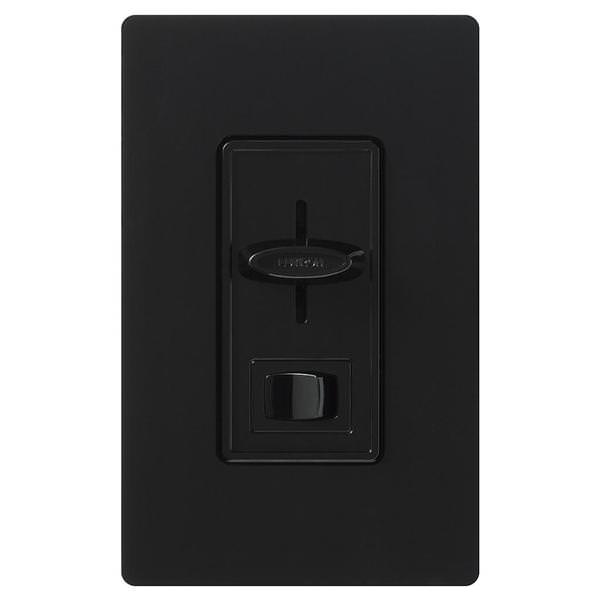

SF-12P-277-3-BL SKYLARK FLUOR 277V 1-12LP 3WY BLACK
|
|
UPC Code:
|
027557680844
|
|
Case Size:
|
6
($1,075.74/Case)
|
|
The pricing of $179.29 is per item, not per case
|
|
|
|
|
|
Type:
|
Single-Pole / 3-Way
|
|
Color / Finish:
|
Black
|
|
Bulb Compatibility:
|
Fluorescents
|
|
|
Applications
|
| Use one dimmer in a 3-way application. In the other location use a standard mechanical switch, such as model CA-3PS. Because this requires a neutral connection, dimmer must be placed on the load side of the 3-way
|
|
|
|
Features
|
| On / off switch |
| Preset slide dimmer |
| Neutral connection required |
| | Troubleshooting |
| Problem: Light does not turn on |
| Make sure control is being used with a Lutron 3-wire ballast or driver |
| Problem: One location will not turn on if the other location is turned off |
| The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox, or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control, one side will only turn on if the other is in the on position.
|
|
|
|
