Part #:
|
LU52114
|
|
Manufacturer:
|
Lutron
|
|
Manufacturer Part #:
|
52114
|
|
Manufacturer Description:
|

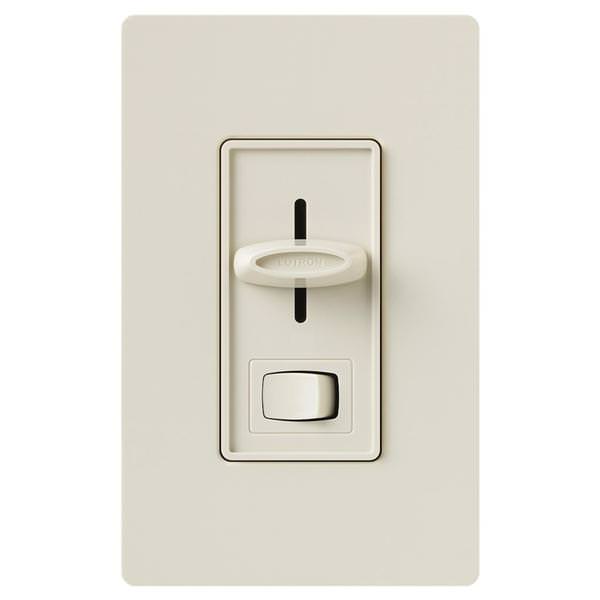

S-103P-LA SKYLARK INC 1000W PRESET 3WY LIGHT ALMOND
|
|
UPC Code:
|
027557521147
|
|
Case Size:
|
8
($755.92/Case)
|
|
The pricing of $94.49 is per item, not per case
|
|
|
|
|
|
Type:
|
Single-Pole / 3-Way
|
|
Color / Finish:
|
Light Almond
|
|
Maximum Wattage:
|
1000 watts
|
|
Minimum Load:
|
40 watts
|
|
Bulb Compatibility:
|
Incandescents, Halogens
|
|
|
Applications
|
| Only use one dimmer in a 3-way application. In the other location use a standard mechanical switch, such as model CA-3PS or CA-4PS |
| Can be used in a 4-way application |
| In a 4-way application, three switches control the lights. Two of those switches are 3-ways and the middle location is a 4-way. Dimmer will need to be installed in one of the two 3-way locations. Switches will need to be kept in the other 3-way and the 4-way location
|
|
|
|
Features
|
| Preset slide dimmer |
| Only works with incandescent and halogen bulbs |
| Can be installed without a ground connection |
| | Troubleshooting |
| Problem: Lights flicker or do not turn off |
| Check the bulbs in use are incandescent or halogen |
| If being used in a 3-way application, make sure only one dimmer is on the circuit. A mechanical on/off switch will need to be used in the other location |
| Problem: One location will not turn on if the other location is turned off |
| The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox, or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control, one side will only turn on if the other is in the on position.
|
|
|
|
Related Documents
|
|
|
