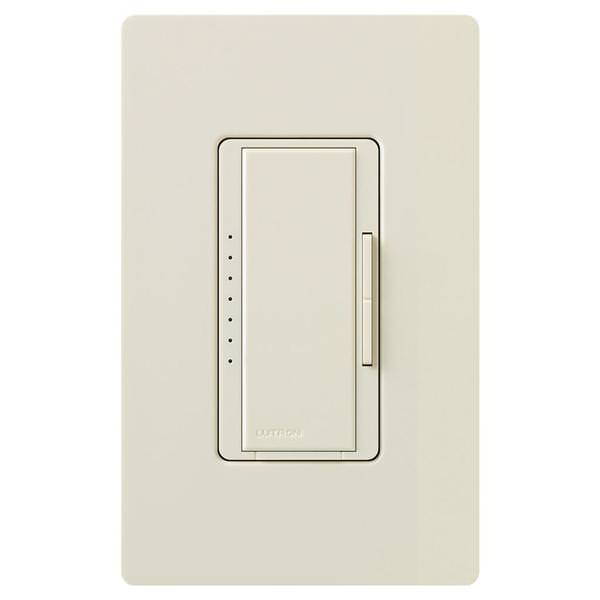

Lutron Dimmer Switch (44306)

120 volt - 600 watt - Light Almond - Wall Switch - Preset Dimmer - Incandescent / Halogen Compatible - Electronic Low Voltage - Single-Pole / 3-Way - Toggler - Maestro

$141.99

Retail: $173.10

Should ship by September 19

Write the First Review

This product does not include the wall plate as pictured.

UPC Code:

027557443067

Case Size:

8 ($1,135.92/Case)

The pricing of $141.99 is per item, not per case

Type:

Single-Pole / 3-Way

Color / Finish:

Light Almond

Minimum Load:

5 watts

Bulb Compatibility:

Incandescents, Halogens

Applications

	In a 3-way application use only one master dimmer. In the other location use a Maestro companion dimmer (model MA-R)
	In a 3-way application, the master dimmer needs to be placed on the load side of the application because a neutral connection is required

Features

	On / off switch
	Slide preset dimmer
	Neutral connection required
	Ground connection not required

Troubleshooting
	Problem: Lights are flickering
	Check the bulbs in use are incandescent or halogen
	Problem: Companion dimmer does not work
	Make the master dimmer is placed on the load side of the 3 or 4-way application
	Check the wire connected to the blue screw on the master dimmer is the same wire connected to the blue screw on the companion dimmer

Related Documents

		3-Way Wiring (Companion Switch) Diagram
		4-Way Wiring (Companion Switches) Diagram
		Advanced Programming Mode
		CAD Block
		Dimmer Application 3
		Dimmer Application 519
		Installation Instructions
		Single Pole Wiring Diagram
