Part #:
|
LU33123
|
|
Manufacturer:
|
Lutron
|
|
Manufacturer Part #:
|
33123
|
|
Manufacturer Description:
|

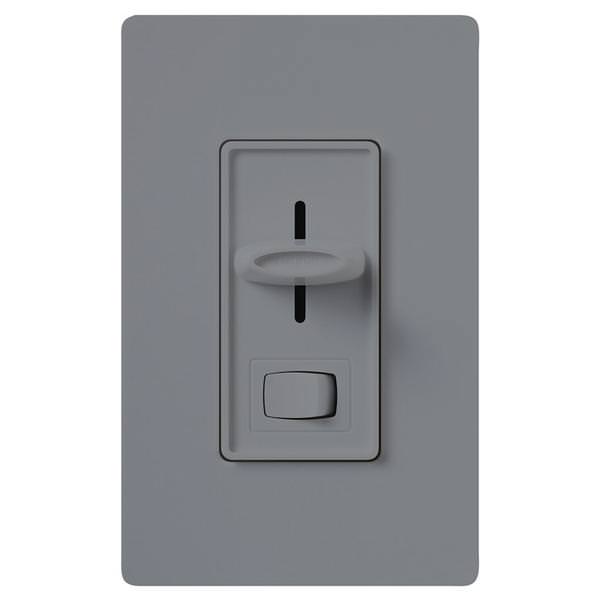

SLV-603P-GR SKYLARK 600VA 3WY PRESET GRAY
|
|
UPC Code:
|
027557331234
|
|
Case Size:
|
8
($470.32/Case)
|
|
The pricing of $58.79 is per item, not per case
|
|
|
|
|
|
Type:
|
Single-Pole / 3-Way
|
|
Color / Finish:
|
Gray
|
|
Maximum Wattage:
|
450 watts
|
|
Minimum Load:
|
40 watts
|
|
Bulb Compatibility:
|
Incandescents, Halogens
|
|
|
Applications
|
| Can be installed without a ground connection |
| In a 3-way application use only one Skylark dimmer. In the other location a standard mechanical switch is needed, such as model CA-3PS or CA-4PS |
| Can be used in a 4 way application. In this type of application three switches control the lights. Two of those switches are 3-ways, the middle location is a 4-way. A Diva dimmer will need to be installed in one of the two 3-way locations. Switches will need to be kept in the other 3-way and in the 4-way location
|
|
|
|
Features
|
| Slide dimmer |
| Only works with incandescent and halogen bulbs |
| | Troubleshooting |
| Problem: Lights flicker or do not turn off |
| Check the bulbs in use are incandescent or halogen |
| If being used in a 3-way application, make sure only one dimmer is on the circuit. A mechanical on/off switch will need to be used in the other location |
| Problem: One location will not turn on if the other location is turned off |
| The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox, or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control, one side will only turn on if the other is in the on position.
|
|
|
|
