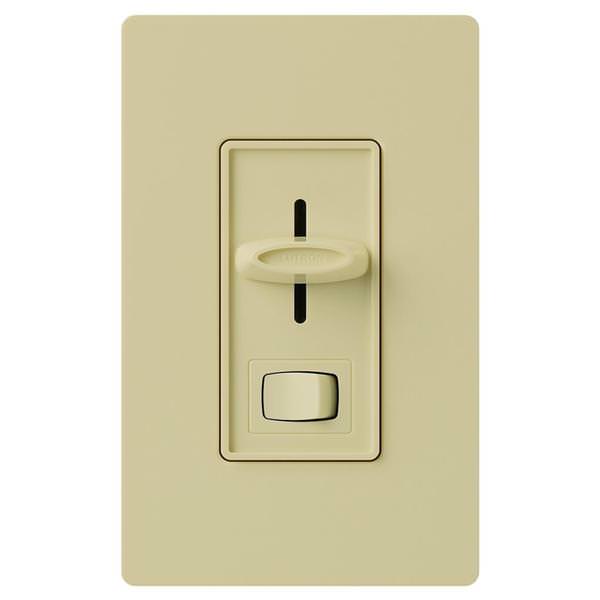

| On / off switch |
| Preset slide dimmer |
| Neutral connection required |
|
| Troubleshooting |
| Problem: Light does not turn on |
| Make sure control is being used with a Lutron 3-wire ballast or driver |
| Problem: Bulbs flicker once every 6-8 seconds when trying to turn on |
| Could be a problem with the lamp socket wiring. See the Troubleshooting Guide |
| Make sure bulbs in use are compatible with the ballast or driver controlling them |
| Problem: Bulbs flicker when dimmed |
| Make sure bulbs in use are compatible with the ballast/driver/interface controlling them |
| Check to make sure dimmed hot and switched hot wires are not reversed |
| If being used in a 3-way application, make sure only one dimmer is on the circuit. A mechanical on/off switch will need to be used in the other location |
| Problem: One location will not turn on if the other location is turned off |
| The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox, or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control, one side will only turn on if the other is in the on position.
|
