120 volt Single Pole Taupe Dual Dimmer and Timer
Click to view larger photo
Lutron Ballasts

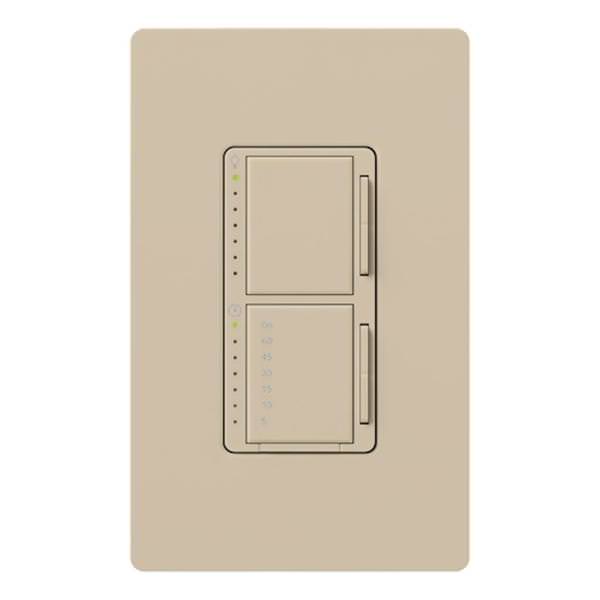

Lutron Dual Dimmer and Timer (28978)

120 volt - Single Pole - Taupe - Maestro

$79.39
  Retail: $91.20
Quantity:
Should ship by September 19
Details
Part #: LU28978
Manufacturer: Lutron
Manufacturer Part #: 28978
Manufacturer Description:

MA-L3T251-TP MA DIM/TIM 1H 300/25 TP TP

UPC Code: 027557289788
Case Size: 12    ($952.68/Case)
The pricing of $79.39 is per item, not per case
Color / Finish: Taupe
Max Light Rating: 300 watts
Max Timer Rating: 2.5 amps
Minimum Light Load: 40 watts
Bulb Compatibility: Incandescents, Halogens
Applications
Rated for permanently installed fan and lighting loads only
Does not require a neutral connection
Cannot be used in a 3-way application. This timer is single pole only
Features
Timer and dimmer can be used for incandescent or halogen lights, timer can be used for fan
Use with either lights or a fan, not both
Tap on to start timer
Various time settings up to 60 minutes
Load briefly turns off and then back on again one minute before the timer is set to turn the load off. This function cannot be disabled.
Offers an override to keep the light or fan on continuously
Troubleshooting
Problem: Lights flicker or do not turn off
Check the bulbs in use are incandescent or halogen
Problem: One light will only turn on if the other light is already on
Check the bulbs in use are incandescent or halogen
Related Documents
Advanced Programming Mode
Dimmer Application 3
Dimmer Application 519
Installation Instructions
Wiring Diagram
