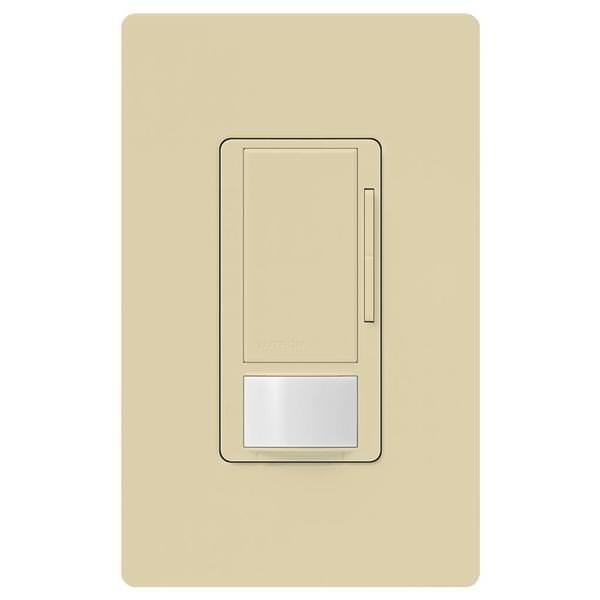

| 0-10 volt dimming |
| Single-pole, 3-way or multi-location use |
| Maximum 8 amps |
| Lutron companion dimmers (model MA-R) are not compatible with this sensor. Use companion model MA-S if a companion dimmer is needed |
| 2 Maestro sensors cannot be used in a 3-way application. A mechanical 3-way switch or Maestro companion switch (model MA-AS) will need to be used in the other location |
|
| Troubleshooting |
| Problem: Lights do not dim or remain at low light level |
| Remove the 0-10V (violet/gray) leads from the control. Lights should go to 100%. If they don't, check the fixture wiring. Touch the violet/gray wires together on the ballast or driver. Lights should dim down to low end. If not, consult troubleshooting steps from the ballast/driver manufacturer. |
| Problem: Light drops out when dimming, or turns on to brightest level before reaching the highest level on the dimmer |
| Adjust low-end or high-end trim as per instructions in the advanced programming guide
|
