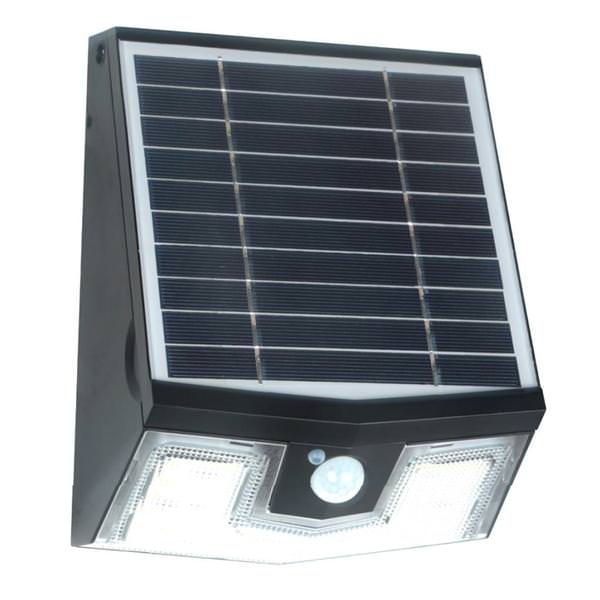

Light Efficient Design Solar Wall Pack (02365)

15 watt - 4,000K - Cool White - SWL - Dimmable

$171.39

Retail: $261.25

Should ship by September 18

Write the First Review

Replaces a 100 watt
Incandescent Bulb

Works with
approved dimmers

UPC Code:

844006023652

Case Size:

4 ($685.56/Case)

Light Output:

1,500 lumens

Energy Used:

15 watts (replaces 100 watts)

Average Lifetime:

35,000 hours

Color / Finish:

Black

Color Temperature:

4,000K

CRI:

Length:

12.2 inches

Width:

10.2 inches

Height:

5 inches

Applications

	Designed for 10-25' mounting height
	IP65 wet location rated

Features

	Includes mounting bracket
	Solar panel and battery are built into the LED fixture
	Fixture does not connect to any power feed (no need for wiring)
	Advanced LiFePO4 battery lasts at least 2000 charge cycles
	Battery lasts up to 50 hours (depending on mode in use) with a 7 hour charge
	Panel angle is adjustable to maximize sunlight and allow snow to slide off. See Spec Sheet PDF for optimal angle for your location

Operating Modes
	3 operating modes that are programmable via remote control on fixture
	Mode 1: Main light automatically turns on at dusk and remain at 50% brightness when motion sensor is disabled. After 5 hours or when battery capacity is below 30%, lamp will switch to Mode 3
	Mode 2: Main light automatically turns on to full brightness when motion is detected in the range of 24 feet; it will turn off after 20 seconds when no motion is detected. The bottom portion of the lamp will automatically turn on when the main light turns off and then turn off once motion is detected.
	Mode 3: Main light turns on to full brightness when motion is detected in the range of 24 feet. Once no motion is detected for 20 seconds, the lamp will turn off. The bottom portion of the lamp will not turn on in this mode.

Manufacturer's Warranty

3 Years

Related Documents

		Solar Best Practices and Guidelines
		Spec Sheet
