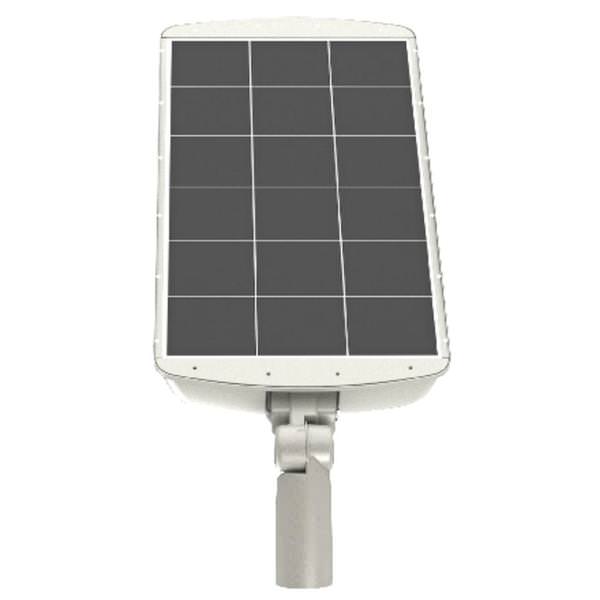

Light Efficient Design Solar Area Light (01126)

30 watt - 5,000K - Daylight - Gray - Dimmable - Type 3 - SAL

$1,335.99

Retail: $2,087.49

Should ship by September 19

Write the First Review

Replaces a 250 watt
Incandescent Bulb

Works with
approved dimmers

UPC Code:

844006011260

Light Output:

6,000 lumens

Energy Used:

30 watts (replaces 250 watts)

Average Lifetime:

100,000 hours

Color / Finish:

Gray

Color Temperature:

5,000K

CRI:

Length:

36 inches

Width:

16.7 inches

Height:

3.7 inches

Weight:

30 pounds

Distribution Type:

Type III

Applications

	Designed for mounting heights up to 30'
	Level 12 wind certified
	UN 38.3 travel certified battery safety
	Greenway lighting
	Parks
	Parking lots
	Transit shelters

Features

	Solar panel, battery, LED module, photocell, motion sensor, and controller all built right into fixture
	Includes adjustable slip-fitter bracket and remote control to change fixture modes
	Photocell automatically turns on fixture at night
	Does not connect to any power feed
	7 hour charge time
	Battery lasts at least 2,000 charge cycles
	LED module and fixture are separately adjustable
	Integrated solar panel is sealed and gasketed so water cannot get into the unit
	Install fixture at over a 15° angle to maximize sun's impact and to allow debris/snow to naturally fall off

Motion Sensing Mode
	Maximum battery life
	Uses motion sensor to be at lower light level until motion is sensed
	When motion is sensed, unit goes to 80-100% brightness
	50-55 hour battery life per charge

Time Control Mode
	Unit turns on at dusk at about 80-100% (depending on your setting) then gradually ramps down based on a step you can program
	30-40 hour battery life per charge

Constant Brightness Mode
	Set the unit at 80% or 100% brightness
	Brightness stays the same all night
	12-20 hour battery life

Manufacturer's Warranty

5 Years
