Power Select 120/277 volt Color Select Bronze Full Cutoff X-Fit Dimmable LED
Click to view larger photo
Keystone Ballasts

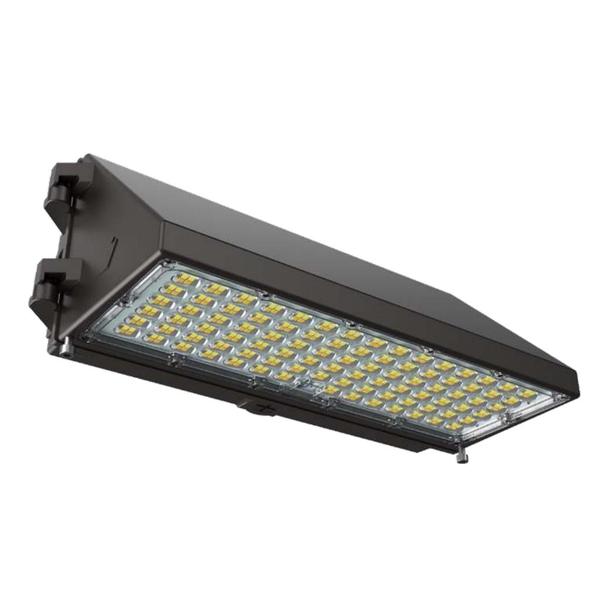

Keystone LED Wall Pack (16246)

55/70/80 watt - 120/277 volt - 3,000K/4,000K/5,000K - Bronze - Power Select - Color Select - Full Cutoff - X-Fit - Dimmable

$228.29
  Retail: $351.56
Quantity:
Should ship by October 3
Design Lights Consortium Premium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 250 watt
Incandescent Bulb
Works with
approved dimmers
Details
Part #: KT16246
Manufacturer: Keystone
Manufacturer Part #: 16246
Manufacturer Description:

KT-WPLED80PS-M5-8CSB-VDIM

UPC Code: 843654162461
Case Size: 6    ($1,369.74/Case)
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 250 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Color / Finish: Bronze
Color Temperature: Selectable
CRI: 80
Length: 14.1 inches
Width: 6.5 inches
Efficacy Average: 145 LpW
Applications
UL Certified for wet locations; IP65 rated
Building mount for exterior illumination (perimeters, pathways, loading docks, and other general and aesthetic lighting requirements)
Features
Full cutoff wall pack that covers distribution pattern of legacy HID wall packs
Compatible with two styles of easy-to-install slip-on shells (quarter sphere or half moon) in a variety of colors
Built-in dusk-to-dawn infrared photocell
Powered by Keystone 0–10V dimming LED driver
Ambient operating temperature: -40°C/-40°F to 50°C/122°F
Fixture impact rating IK08
Power Factor: > 0.95
THD: < 20%
Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
Manufacturer's Warranty
10 Year Limited
Related Documents
Spec Sheet
