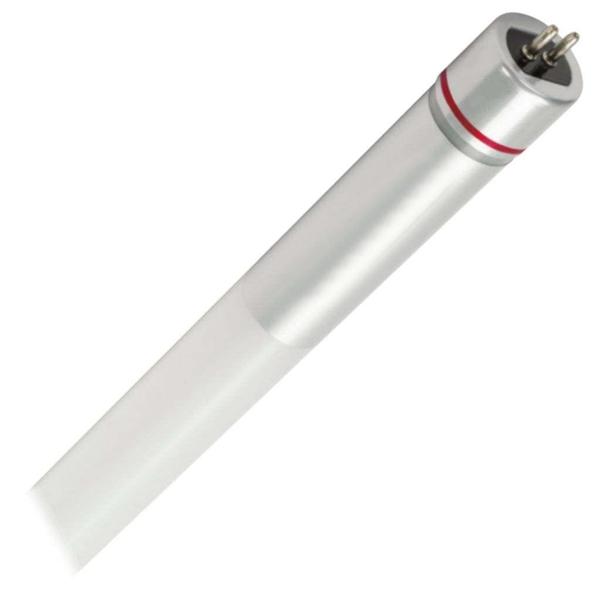

13 watt 120/277 volt 48" T5 Miniature Bi-Pin Base 3500K Neutral White Frosted Non-Dimmable LED
Click to view larger photo
Keystone Ballasts

Keystone LED Light Bulb (15821 / KT-LED13T5HE-48GC-835-DX2 /G2)

13 watt - 120/277 volt - 48" - T5 - Miniature Bi-Pin (G5) Base - 3,500K - Neutral White - Frosted - Ballast Bypass - Single or Double-Ended - DX2 Series - Non-Dimmable

$18.79
  Retail: $24.31
Quantity:
In Stock - Ships Fast!
Design Lights Consortium QUALIFIED
National Standards for Food Safety Certified
UL Classified
UL Recognized
RoHS Compliant
Ballast Bypass /
Direct Wire
Details
Part #: KT15821
Manufacturer: Keystone
Manufacturer Part #: 15821
Manufacturer Description:

KT-LED13T5HE-48GC-835-DX2 /G2

UPC Code: 843654158211
Case Size: 25    ($469.75/Case)
The pricing of $18.79 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Light Output: 1,700 lumens
Energy Used: 13 watts
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: T5
Base Type: Miniature Bi-Pin (G5)
Color / Finish: Neutral White
Color Temperature: 3,500K
CRI: 83
Length: 45.2 inches
Beam Angle: 170°
Operating temperature: –20ºC/–4ºF to 45ºC/113ºF
Efficacy: 131 LpW
Features
ballast
Integral driver (isolated) eliminates the need for external driver or
Single- or Double-Ended Wiring
Instant startup
Frosted lens eliminates pixelation
Improved lamp durability with shatterproof coated glass
Manufacturer's Warranty
5 Year limited
Related Documents
Spec Sheet
