  5. Keystone 15198
15/20/25 watt 120/277 volt CCT Selectable Dimmable LED Canopy
Click to view larger photo
Keystone Ballasts

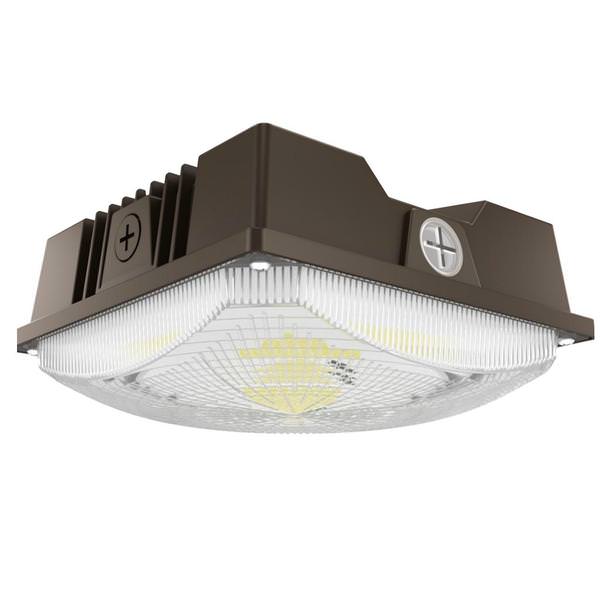

Keystone LED Canopy Fixture (15198)

15/20/25 watt - 120/277 volt - 3,000K/4,000K/5,000K - CCT Selectable - Bronze - Square - Photocell - XFit - Power Select - Color Select - Dimmable

$148.19
  Retail: $197.12
Quantity:
Should ship by September 19
Design Lights Consortium Premium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 100 watt
Incandescent Bulb
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT15198
Manufacturer: Keystone
Manufacturer Part #: 15198
Manufacturer Description:

KT-CLED25PS-S1-8CSB-VDIM
UPC Code: 843654151984
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 100 watts)
Average Lifetime: 100,000 hours
Volts: 120/277
Color / Finish: Bronze
Color Temperature: Selectable
CRI: 80
Length: 8 inches
Width: 8 inches
Height: 3.6 inches
Beam Angle: 160°
Lumens: 1875-3500
Efficacy: 125-140 LpW
Applications
Suitable for wet locations
Parking garages
Covered exterior corridors
Walkways
Stairwells
Features
Keystone Power Select technology (25/20/15W)
Keystone Color Select technology (3000/4000/5000K)
Familiar, low profile design ideal for a wide range of new and replacement installations
Heavy duty die cast aluminum housing with a modern aesthetic and (3) 1/2" NPT threaded conduit hubs
Built in dusk to dawn photocell behind translucent 3/4" threaded plug with anti-yellowing agent
Powered by Keystone LED 0-10V dimming driver
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
