  5. Keystone 15197
20/30/40 watt 120/277 volt CCT Selectable White Dimmable LED Canopy
Click to view larger photo
Keystone Ballasts

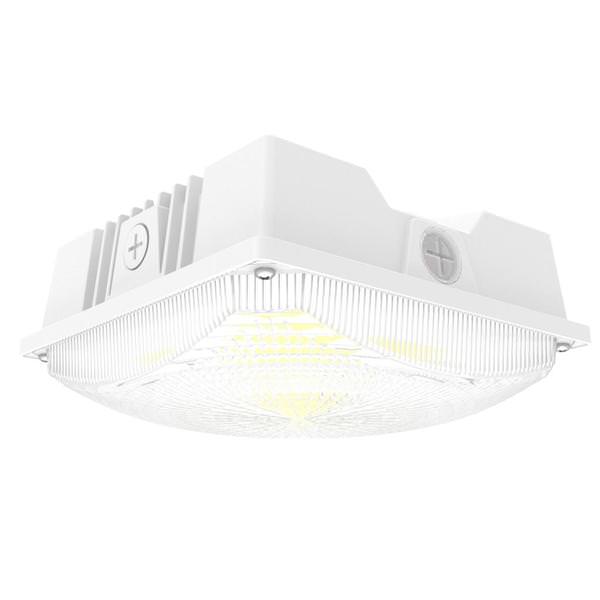

Keystone LED Canopy Fixture (15197)

20/30/40 watt - 120/277 volt - 3,000K/4,000K/5,000K - CCT Selectable - White - Square - Photocell - XFit - Power Select - Color Select - Dimmable

$165.19
  Retail: $213.73
Quantity:
Should ship by September 19
Design Lights Consortium Premium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 175 watt
Incandescent Bulb
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT15197
Manufacturer: Keystone
Manufacturer Part #: 15197
Manufacturer Description:

KT-CLED40PS-S1-8CSB-VDIM-W
UPC Code: 843654151977
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 175 watts)
Average Lifetime: 100,000 hours
Volts: 120/277
Color / Finish: White
Color Temperature: Selectable
CRI: 80
Length: 8 inches
Width: 8 inches
Height: 3.6 inches
Beam Angle: 160°
Lumens: 2500-5600
Efficacy: 125-140 LpW
Applications
Suitable for wet locations
Parking garages
Covered exterior corridors
Walkways
Stairwells
Features
Keystone Power Select technology (40/30/20W)
Keystone Color Select technology (3000/4000/5000K)
Familiar, low profile design ideal for a wide range of new and replacement installations
Heavy duty die cast aluminum housing with a modern aesthetic and (3) 1/2" NPT threaded conduit hubs
Built in dusk to dawn photocell behind translucent 3/4" threaded plug with anti-yellowing agent
Powered by Keystone LED 0-10V dimming driver
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
