48" 15 Watt 120/277 volt T8 Medium Bi-Pin (G13) Base CCT Selectable Ballast Bypass Dimmable LED
Click to view larger photo
Keystone Ballasts

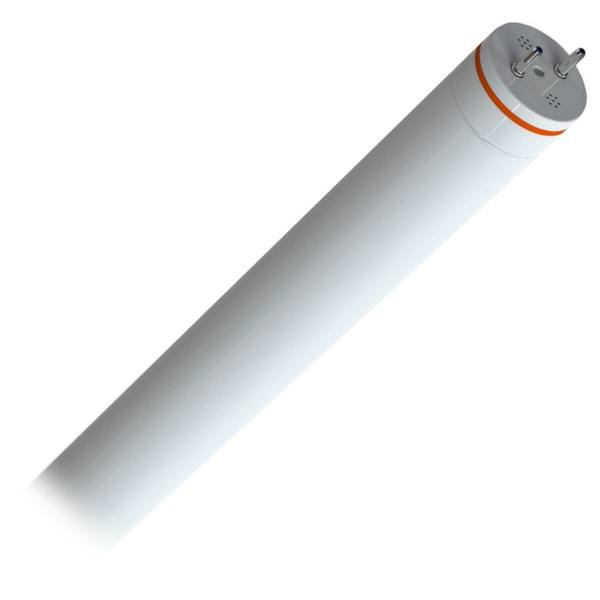

Keystone LED Light Bulb (14866 / KT-LED15T8-48G-840-D2 /G2)

48" - 15 Watt - 120/277 volt - T8 - Medium Bi-Pin (G13) Base - 3,500K/4,000K/5,000K - CCT Selectable - Double Ended - Ballast Bypass / Direct Wire - Dimmable

$15.69
  Retail: $19.14
Quantity:
Should ship by November 11
Design Lights Consortium QUALIFIED
UL Classified
UL Recognized
RoHS Compliant
Works with
approved dimmers
Ballast Bypass /
Direct Wire
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT14866
Manufacturer: Keystone
Manufacturer Part #: 14866
Manufacturer Description:

KT-LED15T8-48G-840-D2 /G2
UPC Code: 843654148663
Case Size: 6    ($94.14/Case)
The pricing of $15.69 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Light Output: 2,200 lumens
Energy Used: 15 watts
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: T8
Base Type: Medium Bi-Pin (G13)
Color / Finish: Selectable
Color Temperature: Selectable
CRI: 80
Beam Angle: 240°
Efficacy: 146 LpW
Applications
Not rated for use in Vapor Tight style fixtures
Environmentally friendly: No mercury used
Features
Replacement for conventional fluorescent lamp
Double-ended wiring
50,000+ hour lifetime
Approximately 60% more energy efficient than standard F32T8 lamps
Instant startup
DLC Listed
Frosted glass lens eliminates pixelation
UL Classified
Operating temperature: –20°C/–4°F to 45°C/113°F
Storage temperature: –30°C/–22°F to 60°C/140°F
Operating humidity: 10–80%
Integral driver (isolated), eliminates the need for external driver or ballast
140+ Lumens per Watt
Not compatible with Keystone AC Emergency Drivers: KT-EMRG-LED-5-500-AC, KT-EMRG-LED-5-500-AC/DF, KT-EMRG LED-12-1200-AC, or KT-EMRG-LED-12-1200-AC /DF
Meets FCC Part 15, Part B
Lamp is dimmable when used with an appropriate dimming accessory (purchased separately). Contact Keystone for more details to find out what is best for the intended application
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
