185/210/290 watt 277/480 volt CCT Selectable Bronze LED Area Light
Click to view larger photo
Keystone Ballasts

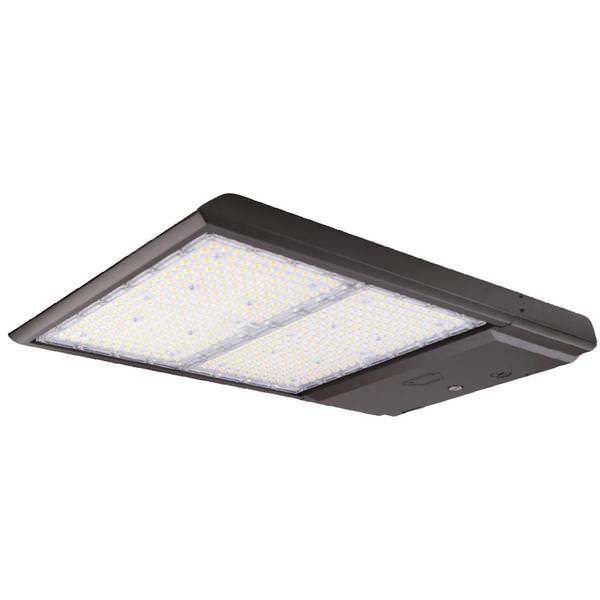

Keystone LED Area Light (14586)

185/210/290 watt - 277/480 volt - 3,000K/4,000K/5,000K - CCT Selectable - Bronze - Type II - Power Select - Color Select - Dimmable

$585.99
  Retail: $817.63
Quantity:
Should ship by September 19
Design Lights Consortium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 1000 watt
Incandescent Bulb
Works with
approved dimmers
Details
Part #: KT14586
Manufacturer: Keystone
Manufacturer Part #: 14586
Manufacturer Description:

KT-ALED290PSHV-L1-2-NM-8CSB-VDIM

UPC Code: 843654145860
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 1000 watts)
Average Lifetime: 50,000 hours
Volts: 277/480
Bulb Type: LED
Color / Finish: Bronze
Color Temperature: Selectable
CRI: 80
Length: 21.9 inches
Width: 13.1 inches
Height: 2.8 inches
Weight: 15.8 pounds
Lumens Range: 24050-39150
Efficacy: 120-145 LpW
Applications
General area lighting
Parking lots
Docks
Barns
Service roads
Security lighting
Features
Keystone Power Select technology (290/210/185W)
Keystone Color Select technology (3000/4000/5000K)
Integrated NEMA/ANSI C136.10 3-pin twist-lock receptacle with shorting cap, standard on all fixtures, simplifies ordering requirements for photo control needs
Four contractor-friendly mounting options available.
Reversible glare shield available, suitable for backside (house-side) or frontside (street-side) shielding
Powered by Keystone 0–10V dimming LED driver featuring 12V AUX power tap, 6kV surge protection
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
