290 watt 277/480 volt 5000K Daylight Bronze Dimmable LED Area Light
Click to view larger photo
Click to watch video
Keystone Ballasts

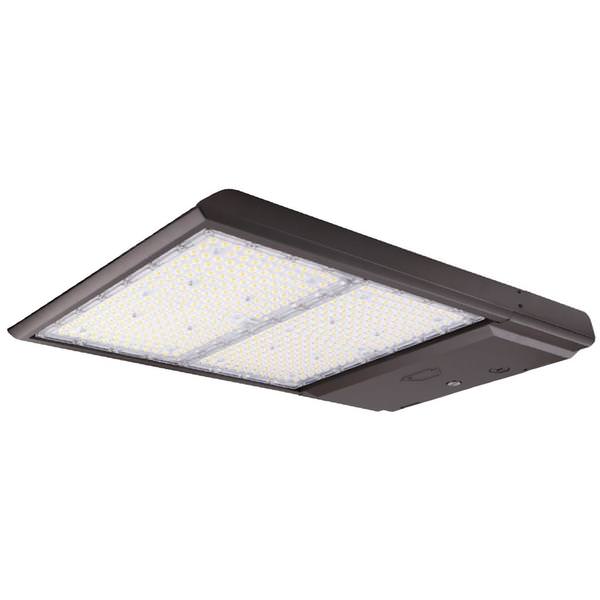

Keystone LED Area Light Fixture (14224)

290 watt - 277/480 volt - 5,000K - Daylight - Bronze - Type IV - 10kV External Surge Protection - XFit - Dimmable

$585.99
  Retail: $817.63
Quantity:
Should ship by September 19
Design Lights Consortium Premium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 1000 watt
Incandescent Bulb
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT14224
Manufacturer: Keystone
Manufacturer Part #: 14224
Manufacturer Description:

KT-ALED290HV-L1-4-NM-850-VDIM
UPC Code: 843654142241
Light Output: 41,180 lumens
Energy Used: 290 watts (replaces 1000 watts)
Average Lifetime: 50,000 hours
Volts: 277/480
Color / Finish: Bronze
Color Temperature: 5,000K
CRI: 80
Length: 21.9 inches
Width: 13.1 inches
Height: 2.8 inches
Weight: 16 pounds
Efficacy: 142 LpW
Applications
Parking lots
Parking garage roofs
General area lighting
Features
10kV external surge protection included
Integrated NEMA/ANSI C136.10 3-pin twist-lock receptacle with shorting cap, standard on all fixtures, simplifies ordering requirements for photo control needs
Precision-crafted optics, available with type II, III, IV, and V patterns, to meet diverse requirements from general purpose to specification-grade applications
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
Video Demonstration
