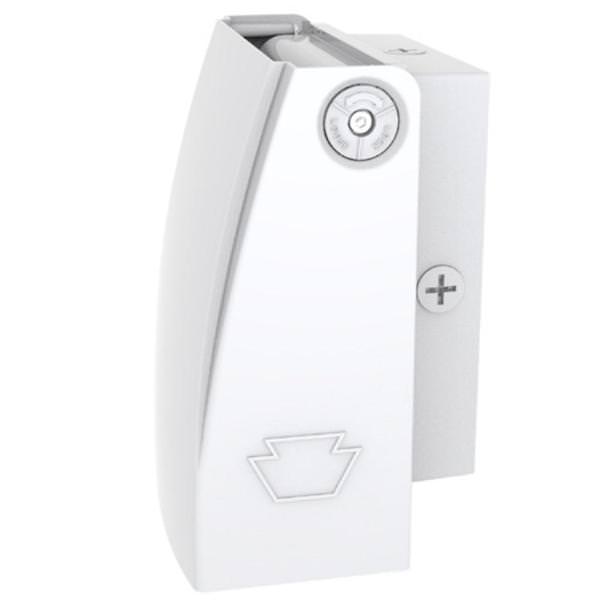

15/25/35 watt 120/277 volt CCT Selectable White Dimmable Mini LED Wall Pack
Click to view larger photo
Keystone Ballasts

Keystone Wall Pack Light Fixture (14185)

15/25/35 watt - 120/277 volt - 3,000K/4,000K/5,000K - White - Color Select - Power Select - Wall mount - Photocell - XFit - Dimmable

$219.99
  Retail: $243.54
Quantity:
Should ship by September 19
Design Lights Consortium Premium QUALIFIED
UL Listed
Replaces a 150 watt
Incandescent Bulb
Works with
approved dimmers
Details
Part #: KT14185
Manufacturer: Keystone
Manufacturer Part #: 14185
Manufacturer Description:

KT-WPLED35PS-S3-8CSB-VDIM-W

UPC Code: 843654141855
Case Size: 8    ($1,759.92/Case)
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 150 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Color / Finish: White
Color Temperature: Selectable
CRI: 80
Length: 7.4 inches
Width: 7 inches
Height: 4.6 inches
Beam Angle: 100°
Lumens: 2178-5075
Efficacy: 135-155 LpW
Applications
Suitable for outdoor and wet locations
Building Facade
Multi-Residential
Commercial & Industrial
Safety & Security
Self Storage Properties
Features
0°- 90° Adjustable LED Wall Pack
Keystone Power Select technology (35/25/15W)
Keystone Color Select technology (3000/4000/5000K)
Heavy duty, die cast aluminum housing with enhanced performance and reliability
Built in dusk to dawn photocell behind translucent 3/4” threaded plug with antiyellowing agent
Keystone 0-10V dimming driver
Manufacturer's Warranty
5 Years
Related Documents
Spec Sheet
