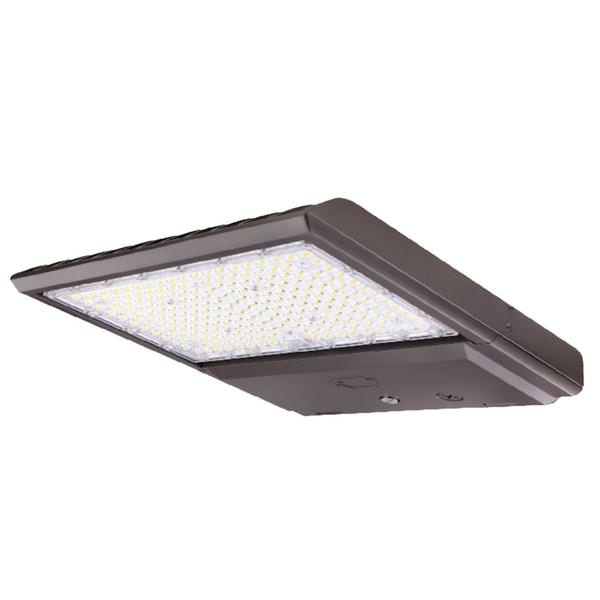

70/100/140 watt 277/480 volt CCT Selectable Bronze LED Area Light
Click to view larger photo
Keystone Ballasts

Keystone LED Area Light (13902)

70/100/140 watt - 277/480 volt - 3,000K/4,000K/5,000K - CCT Selectable - Bronze - Type III - Power Select - Color Select - Dimmable

$369.99
  Retail: $487.85
Quantity:
Should ship by December 16
Design Lights Consortium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 400 watt
Incandescent Bulb
Works with
approved dimmers
Details
Part #: KT13902
Manufacturer: Keystone
Manufacturer Part #: 13902
Manufacturer Description:

KT-ALED140PSHV-M1-3-NM-8CSB-VDIM

UPC Code: 843654139029
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 400 watts)
Average Lifetime: 50,000 hours
Volts: 277/480
Bulb Type: LED
Color / Finish: Bronze
Color Temperature: Selectable
CRI: 80
Length: 14.2 inches
Width: 13.1 inches
Height: 2.8 inches
Weight: 13.2 pounds
Lumens Range: 9380-19880
Efficacy: 130-148 LpW
Applications
General area lighting
Parking lots
Docks
Barns
Service roads
Security lighting
Features
Keystone Power Select technology (140/100/70W)
Keystone Color Select technology (3000/4000/5000K)
Integrated NEMA/ANSI C136.10 3-pin twist-lock receptacle with shorting cap, standard on all fixtures, simplifies ordering requirements for photo control needs
Four contractor-friendly mounting options available.
Reversible glare shield available, suitable for backside (house-side) or frontside (street-side) shielding
Powered by Keystone 0–10V dimming LED driver featuring 12V AUX power tap, 6kV surge protection
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
