185/210/290 watt 120/277 volt CCT Selectable White LED Area Light
Click to view larger photo
Keystone Ballasts

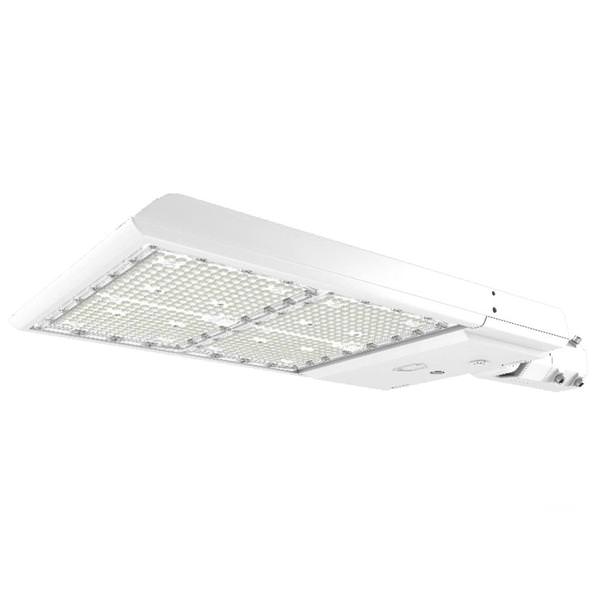

Keystone LED Area Light (13901)

185/210/290 watt - 120/277 volt - 3,000K/4,000K/5,000K - CCT Selectable - White - Type V - Slip Fitter Mount - Photocell - Power Select - Color Select - Dimmable

$549.99
  Retail: $774.29
Quantity:
Should ship by September 19
Design Lights Consortium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 1000 watt
Incandescent Bulb
Works with
approved dimmers
Details
Part #: KT13901
Manufacturer: Keystone
Manufacturer Part #: 13901
Manufacturer Description:

KT-ALED290PS-L1-5-SF-8CSB-VDIM-P-W

UPC Code: 843654139012
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 1000 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: LED
Color / Finish: White
Color Temperature: Selectable
CRI: 80
Length: 31.6 inches
Width: 13.11 inches
Height: 3.5 inches
Weight: 10 pounds
Lumens: 24790-41180
Efficacy: 132-148 LpW
Applications
General area lighting
Parking lots
Docks
Barns
Service roads
Security lighting
Features
Compact, low-profile design delivers high-performance illumination and improves application site aesthetics
Heavy-duty, die-cast aluminum housing with ample heat sinking for enhanced thermal performance
Keystone Power Select technology (290/210/185W)
Keystone Color Select technology (3000/4000/5000K)
3-pin twist-lock photocell included along with integrated NEMA/ ANSI C136.41 7-pin-twist lock receptacle and shorting cap, covers control needs and variables
Powered by Keystone 0–10V dimming LED driver featuring 12V AUX power tap, 6kV surge protection
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
