54/63/80 watt 120/277 volt Exclusionary Mogul Screw Base CCT Selectable Non-Dimmable LED
Click to view larger photo
Keystone Ballasts

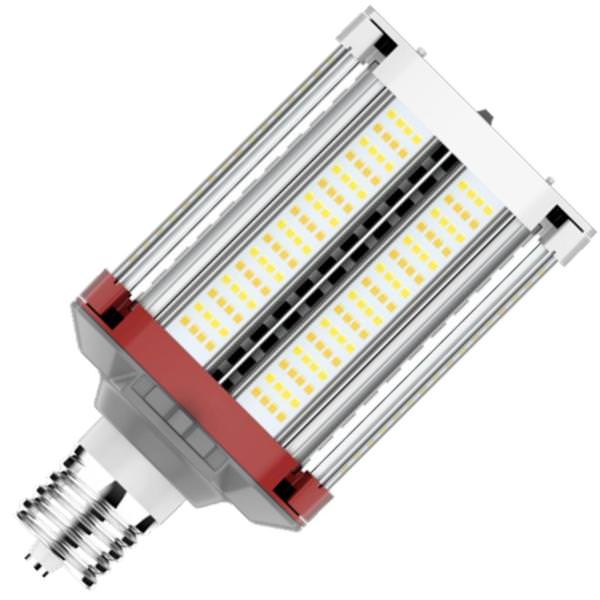

Keystone LED Retrofit Lamp (13892)

54/63/80 watt - 120/277 volt - Corn Cob - Exclusionary Mogul Screw (EX39) Base - 3,000K/4,000K/5,000K - CCT Selectable - Power Select - Color Select - DirectDrive Series - Rotatable Base - Non-Dimmable

$226.89
  Retail: $310.31
Quantity:
In Stock - Ships Fast!
Design Lights Consortium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 320 watt
Incandescent Bulb
Ballast Bypass /
Direct Wire
Details
Part #: KT13892
Manufacturer: Keystone
Manufacturer Part #: 13892
Manufacturer Description:

KT-LED80PSHID-H-EX39-8CSB-D

UPC Code: 843654138923
Case Size: 6    ($1,361.34/Case)
The pricing of $226.89 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 320 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Base Type: Exclusionary Mogul Screw (EX39)
Color / Finish: Selectable
Color Temperature: Selectable
CRI: 80
Length: 8.9 inches
Width: 8.6 inches
Height: 4.8 inches
Beam Angle: 180°
Lumens: 7775-11600
Efficacy: 139-149 LpW
Applications
Suitable for use in a fully enclosed fixture
Features
Optimized for horizontal applications, ideal for wall pack retrofits
Environmentally friendly: No mercury used
Instant startup
Integral driver eliminates the need for external driver or legacy ballast; includes 4kV surge protection
Not for use with standard dimmers; see instructions
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
