30 watt 120/277 volt Programmable Driver
Click to view larger photo
Click to watch video
Keystone Ballasts

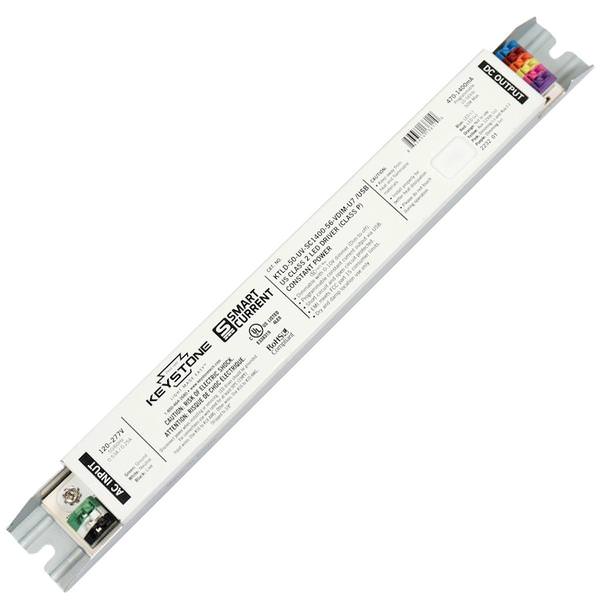

Keystone LED Programmable Driver (13609)

30 watt - 120/277 volt - 50/60 Hz - Constant Current - Dimming - SmartCurrent

$54.19
  Retail: $70.29
Quantity:
In Stock - Ships Fast!
UL Listed
RoHS Compliant
Details
Part #: KT13609
Manufacturer: Keystone
Manufacturer Part #: 13609
Manufacturer Description:

KTLD-30-UV-SC1050-56-VDIM-U7 /USB

UPC Code: 843654136097
Type: Programmable
Energy Used: 30 watts
Volts: 120/277
Length: 10.6 inches
Width: 1.2 inches
Height: 1 inch
Output Current: 350-1050mA
Features
Meets FCC Part 15 (Class B) consumer limits
Short circuit overload and open load protection
Dimmable with 0 –10V dimmer (down to 1% at max. output current)
Auxiliary Power: 12Vdc; 200mA max.
Programmable output current via Keystone supplied
Programming jig
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
Video Demonstration
