120 watt 120/277 volt CCT Selectable White Dimmable LED Wall Pack
Click to view larger photo
Keystone Ballasts

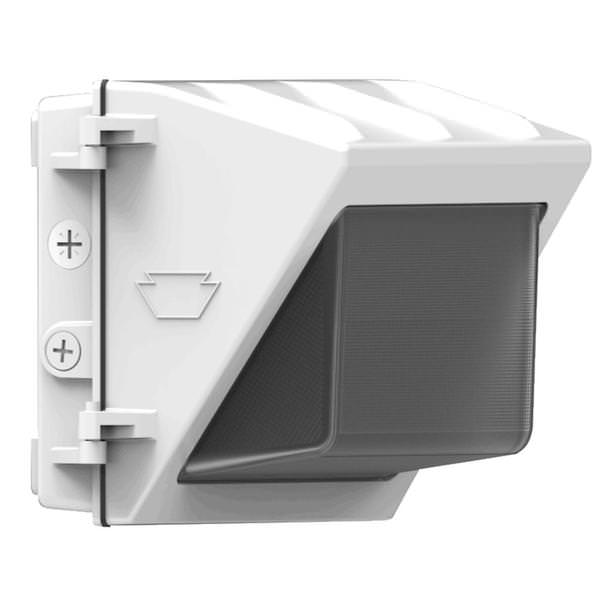

Keystone Wall Pack Light Fixture (13380)

120 watt - 120/277 volt - 3,000K/4,000K/5,000K - White - Color Select - Non-Cutoff - Building Mount - XFit - Dimmable

$224.59
  Retail: $345.95
Quantity:
Should ship by September 19
Design Lights Consortium Premium QUALIFIED
UL Listed
Replaces a 400 watt
Incandescent Bulb
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT13380
Manufacturer: Keystone
Manufacturer Part #: 13380
Manufacturer Description:

KT-WPLED120-L1-8CSB-VDIM-W
UPC Code: 843654133805
Light Output: Selectable lumens
Energy Used: 120 watts (replaces 400 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Color / Finish: White
Color Temperature: Selectable
CRI: 80
Length: 17.8 inches
Width: 9.6 inches
Height: 8.9 inches
Beam Angle: 100°
Efficacy: 137/149/141 LpW
Lumens: 14770/16075/15210
Applications
Suitable for outdoor and wet locations
Building Facade
Multi-Residential
Commercial & Industrial
Safety & Security
Self Storage Properties
Features
Traditional design matches appearance and light distribution pattern of legacy HID, optimized for one-for-one replacements
Heavy-duty, die-cast aluminum housing with (5) available 1/2" threaded conduit hubs: (1) on back and (1) on all four sides
Powered by Keystone 0–10V dimming LED drivers
Keystone Color Select Technology: Adjustable CCT (3000K, 4000K, or 5000K)
Built-in dusk-to-dawn photocell behind translucent 3/4" threaded plug with anti-yellowing agent
Borosilicate glass lens diffuses light source and provides uniform distribution
Manufacturer's Warranty
5 Years
Related Documents
Spec Sheet
