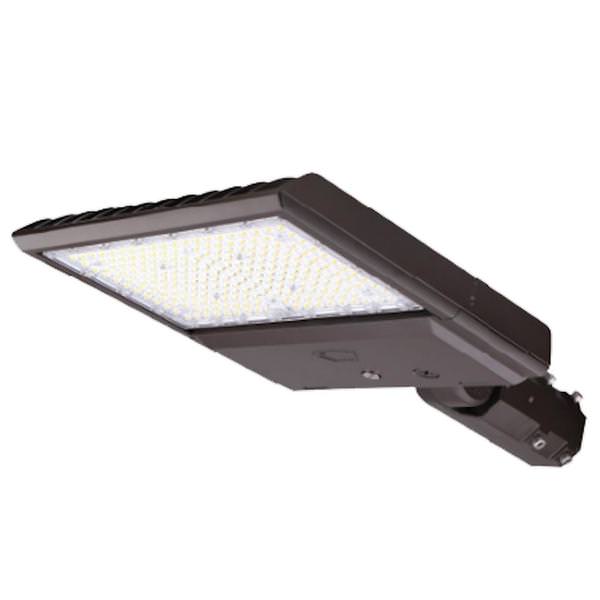

70/100/140 watt 120/277 volt 4000K Cool White Bronze Dimmable LED Area Light

Keystone LED Area Light Fixture (13201)

70/100/140 watt - 120/277 volt - 4,000K - Cool White - Bronze - Type V - 10kV External Surge Protection - Pre-installed Slip Fitter Mount Kit - Dimmable

$339.99

Retail: $487.85

Should ship by October 24

Write the First Review

Works with
approved dimmers

Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!

Details

Part #:

KT13201

Manufacturer:

Keystone

Manufacturer Part #:

13201

Manufacturer Description:

KT-ALED140PS-M1-5-SF-840-VDIM-P

UPC Code:

843654132013

Light Output:

Selectable lumens

Energy Used:

Selectable watts

Average Lifetime:

50,000 hours

Volts:

120/277

Color / Finish:

Bronze

Color Temperature:

4,000K

CRI:

Length:

24 inches

Width:

13 inches

Height:

3.54 inches

Efficacy:

138-148 LpW

Lumens:

10350/14300/19300

Applications

	Parking lots
	Parking garage roofs
	General area lighting

Features

	Keystone Power Select Technology allows fixture to be set to 140W, 100W, or 70W settings
	3-pin twist-lock photocell included along with integrated NEMA/ ANSI C136.41 7-pin-twist lock receptacle and shorting cap, covers control needs and variables
	Pre-installed slip fitter mount kit with type V fixture optics, ideal for single-head pole and general flood applications
	Integral latch design for hassle-free, hinged access to driver compartment
	Powered by Keystone 0–10V dimming LED driver featuring 12V AUX power tap, 6kV surge protection
	Ambient operating temperature: –40ºC/–40ºF to 50ºC/122ºF
	0–10V dimming, 10% min

Manufacturer's Warranty

5 Year

Related Documents

Spec Sheet
