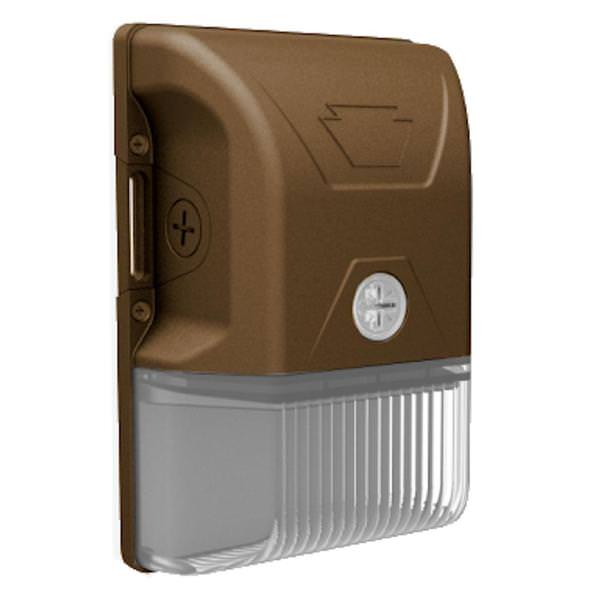

Keystone Wall Pack Light Fixture (12911)

20 watt - 120/277 volt - 3,000K/4,000K/5,000K - Bronze - Color Select - Integrated Photocell - Dimmable

$66.79

Retail: $91.19

In Stock - Ships Fast!

Write the First Review

Works with
approved dimmers

UPC Code:

843654129112

Light Output:

Selectable lumens

Energy Used:

20 watts

Average Lifetime:

50,000 hours

Volts:

120/277

Color / Finish:

Bronze

Color Temperature:

Selectable

CRI:

Length:

8.6 inches

Width:

5.8 inches

Height:

3.1 inches

Weight:

2.8 pounds

Beam Angle:

100°

Efficacy:

125/130/135 LpW

Lumens:

2500/2600/2700

Operating Temperatur:

-40ºC/-40ºF to 50ºC/122ºF

Applications

	Suitable for outdoor and wet locations
	Building Facade
	Multi-Residential
	Commercial & Industrial
	Safety & Security
	Self Storage Properties

Features

	Small non-cutoff design can be mounted virtually anywhere, offering uniform vertical and horizontal distribution pattern for general safety and security illumination needs
	Heavy-duty die-cast aluminum housing features modern aesthetics and includes (3) available 1/2" threaded conduit hubs, (1) on back and (1) on each side
	Powered by Keystone 0–10V dimming LED drivers
	Keystone Color Select Technology: Adjustable CCT (3000K, 4000K, or 5000K)
	Built-in dusk-to-dawn photocell behind translucent 1/2” threaded plug with anti-yellowing agent
	ADA Compliant with low-profile housing less than 4” deep
	Impact-resistant and highly diffused polycarbonate lens with anti-yellowing agent offers reduced glare for low mounting height applications
	0?10V dimming, 10% min

Manufacturer's Warranty

5 Years

Related Documents

Spec Sheet
