1' 11/16/20 watt 120/277 volt 3500K Neutral White Dimmable LED Retrofit Troffer
Keystone Ballasts

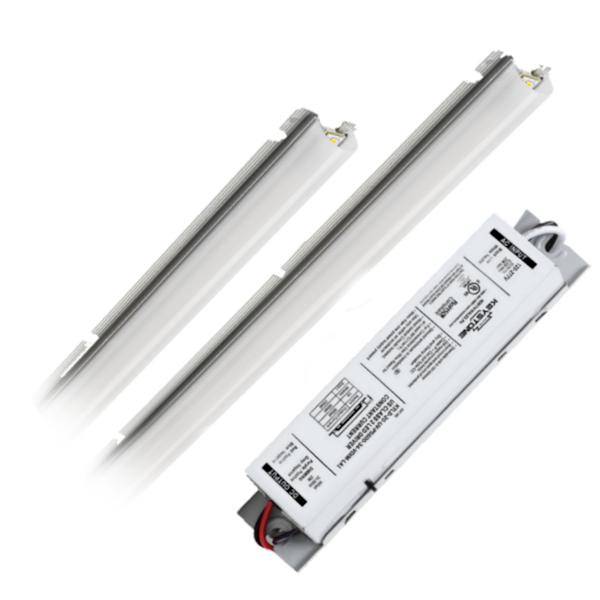

Keystone LED Retrofit Troffer (12820)

1' - 11/16/20 watt - 120/277 volt - 3,500K - Neutral White - Future Fit Series - Dimmable

$80.79
  Retail: $106.59
Quantity:
Should ship by November 13
UL Classified
RoHS Compliant
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT12820
Manufacturer: Keystone
Manufacturer Part #: 12820
Manufacturer Description:

KT-RKIT20PS-2AG11-835-VDIM
UPC Code: 843654128207
Case Size: 20    ($1,615.80/Case)
The pricing of $80.79 is per item, not per case
Size: 1'
Light Output: Selectable lumens
Energy Used: Selectable watts
Average Lifetime: 54,000 hours
Volts: 120/277
Color / Finish: Natural White
Color Temperature: 3,500K
CRI: 80
Length: 11 inches
Width: 1.3 inches
Height: 0.7 inches
Beam Angle: 120°
Lumens: 1550/2333/2730
Efficacy: 146/143/138 LpW
Applications
For use in Class 2 lighting systems
Suitable for use in troffers, wraps, strips, vapor tights, and other indoor fixture types.
Features
High lumen density design
Completely heatsinked, no additional heat sinking needed to maintain LED lifetime
Low profile WAGO push connectors located on the bottom of modules to eliminate dark spots on end-to-end connections
0-10V Dimming
(1) Power-Selectable LED Driver
(2) 11" Alumagroove LED Modules
(2) Lenses
(2) Lenses, Mounting Accessories(Jumper Wires, Tek Screws, Power Quick-Disconnect)
Manufacturer's Warranty
10 Years
Related Documents
Spec Sheet
