13.5/17/20.5 watt 120/277 volt 8" CCT Selectable Dimmable LED Retrofit Kit
Click to view larger photo
Click to watch video
Keystone Ballasts

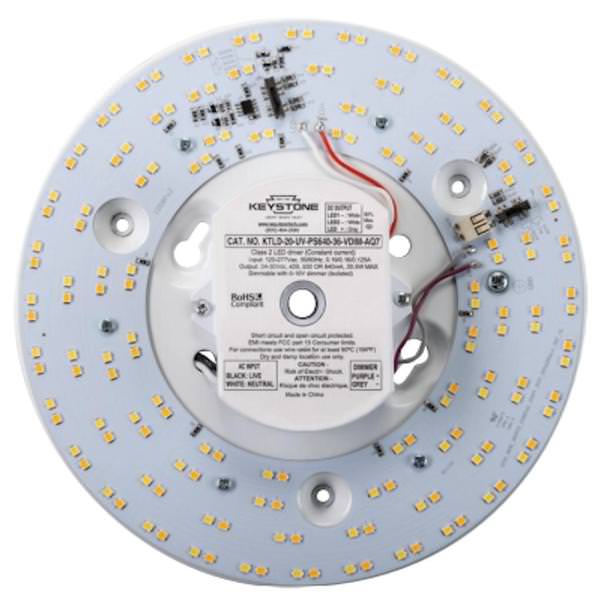

Keystone LED Retrofit Kit (12810)

13.5/17/20.5 watt - 120/277 volt - 8" - 3,000K/3,5000K/4,000K/5,000K - CCT Selectable - Circular - Future Fit - Dimmable

$76.99
  Retail: $90.97
Quantity:
Should ship by September 22
UL Classified
RoHS Compliant
Works with
approved dimmers
Details
Part #: KT12810
Manufacturer: Keystone
Manufacturer Part #: 12810
Manufacturer Description:

KT-RKIT20PS-8CP-8CSC-VDIM

UPC Code: 843654128108
Case Size: 20    ($1,539.80/Case)
The pricing of $76.99 is per item, not per case
Light Output: Selectable lumens
Energy Used: Selectable watts
Average Lifetime: 50,000 hours
Volts: 120/277
Color / Finish: Selectable
Color Temperature: Selectable
CRI: 80
Length: 8 inches
Width: 8 inches
Height: 0.2 inches
Beam Angle: 120°
Lumens: 2100-3200
Efficacy: 152-163 LpW
Features
Power and CCT are selectable via DIP switches
Operating temperature: –20ºC/–4ºF to 45ºC/113ºF
Dimming: 0–10V
Minimum dimming level: 10%
Pre-assembled; mounting accessories included
Meets FCC Part 15, Class B (consumer) limit
Manufacturer's Warranty
10 Year
Related Documents
Spec Sheet
Video Demonstration
