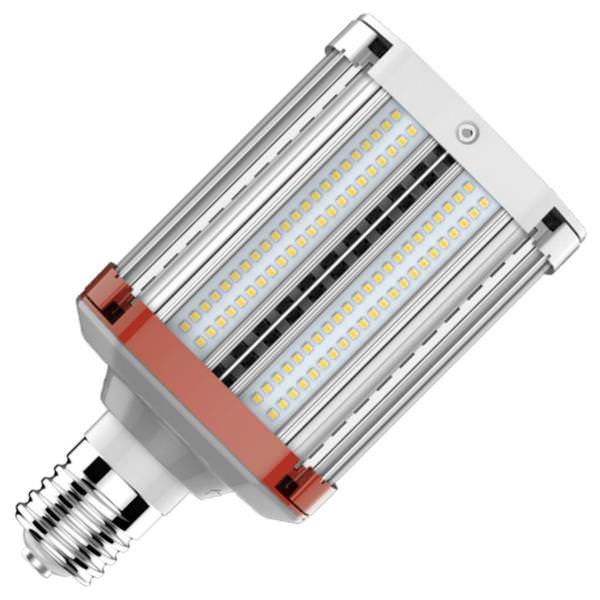

80 watt 120/277 volt Exclusionary Mogul Screw Base 3000K Natural White Non-Dimmable LED

Keystone LED Light Bulb (12356 / KT-LED80HID-H-EX39-830-D /G3)

80 watt - 120/277 volt - Exclusionary Mogul Screw (EX39) Base - 3,000K - Natural White - Rotatable Base - Ballast Bypass - Smart Port - DirectDrive - Non-Dimmable

$188.99

Retail: $281.71

Should ship by September 26

Write the First Review

Replaces a 250/320 watt
Incandescent Bulb

Ballast Bypass /
Direct Wire

Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!

KT-LED80HID-H-EX39-830-D /G3

UPC Code:

843654123561

Case Size:

6 ($1,133.94/Case)

The pricing of $188.99 is per item, not per case

Power Input:

Ballast Bypass / Direct Wire

Light Output:

11,200 lumens

Energy Used:

80 watts (replaces 250/320 watts)

Average Lifetime:

50,000 hours

Volts:

120/277

Base Type:

Exclusionary Mogul Screw (EX39)

Color / Finish:

Natural White

Color Temperature:

3,000K

CRI:

Length:

8.8 inches

Width:

9 inches

Height:

4.7 inches

Beam Angle:

180°

LpW:

140

Applications

	Suitable for use in a fully enclosed fixture
	Ideal for shoebox and canopy retrofit applications

Features

	No mercury used
	Instant startup
	Optimized for horizontal applications with directional light output from opening LED assembly construction
	Operating temperature is -30°C to 60°C / -22°F to 140°F in an enclosed fixture
	Exceeding 30°C / 86°F in fully enclosed fixtures will engage active cooling and power de-rating to ensure full product lifetime
	Integral driver eliminates the need for external driver or ballast; includes 4kV surge protection
	IP64 rated; integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp

Manufacturer's Warranty

5 Years

Related Documents

Spec Sheet

Video Demonstration
